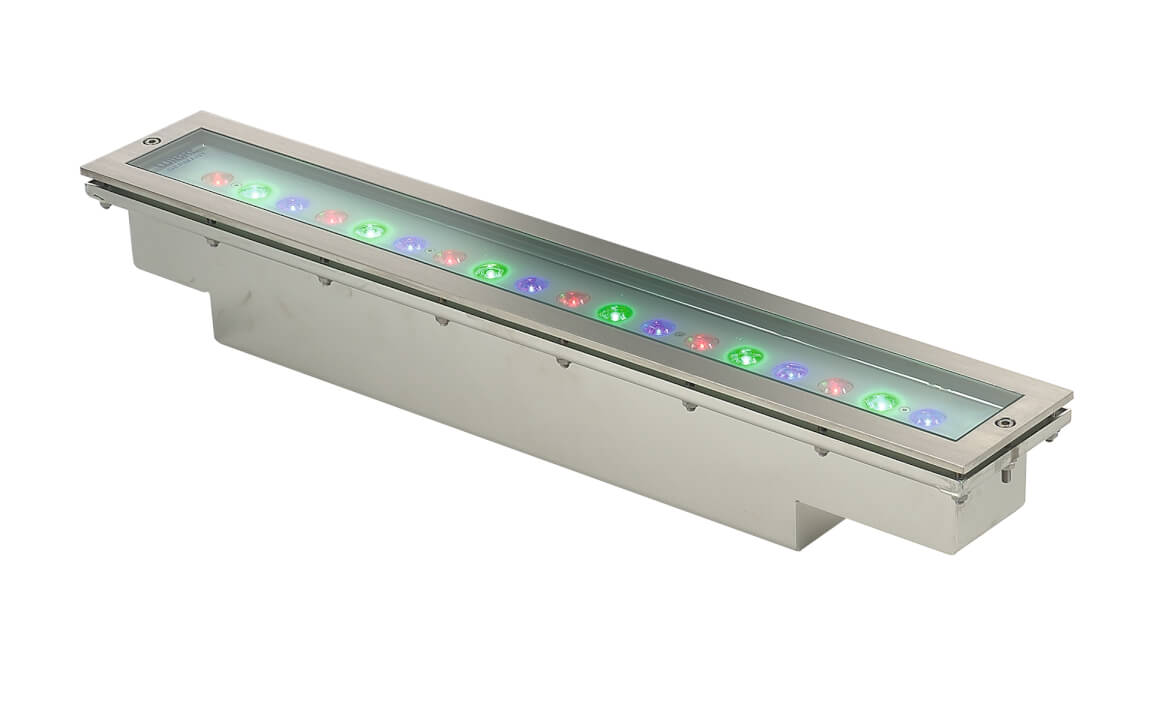

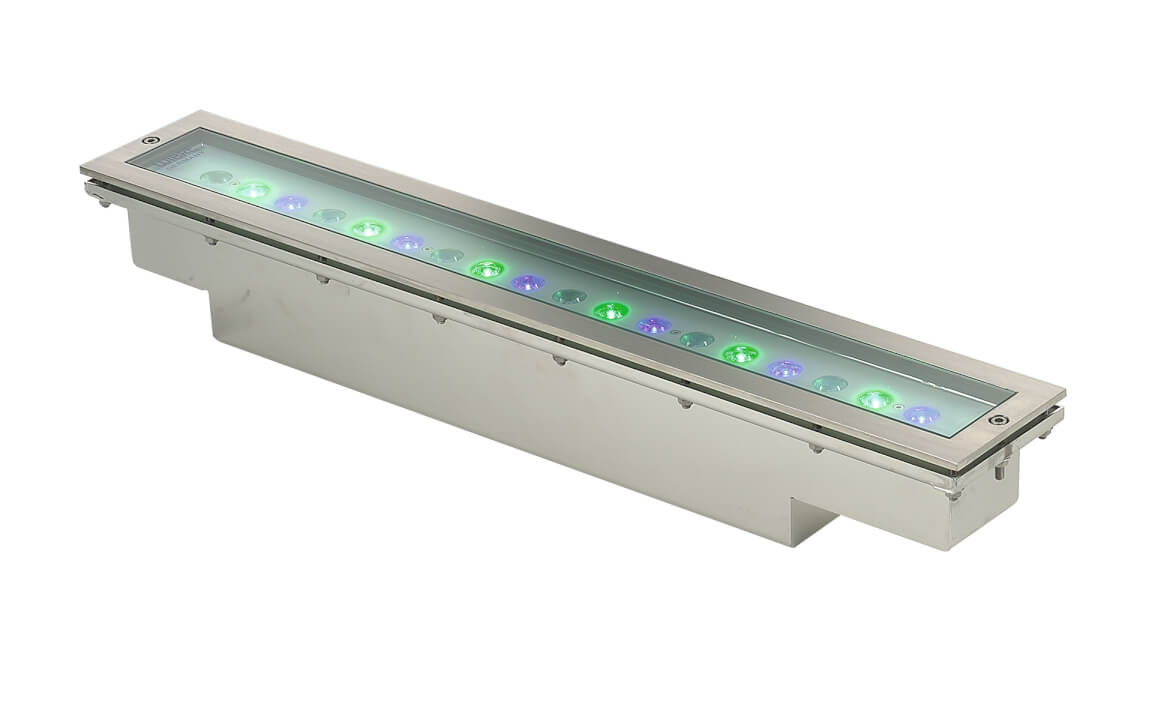

4.3060Recessed Linear Spotlight

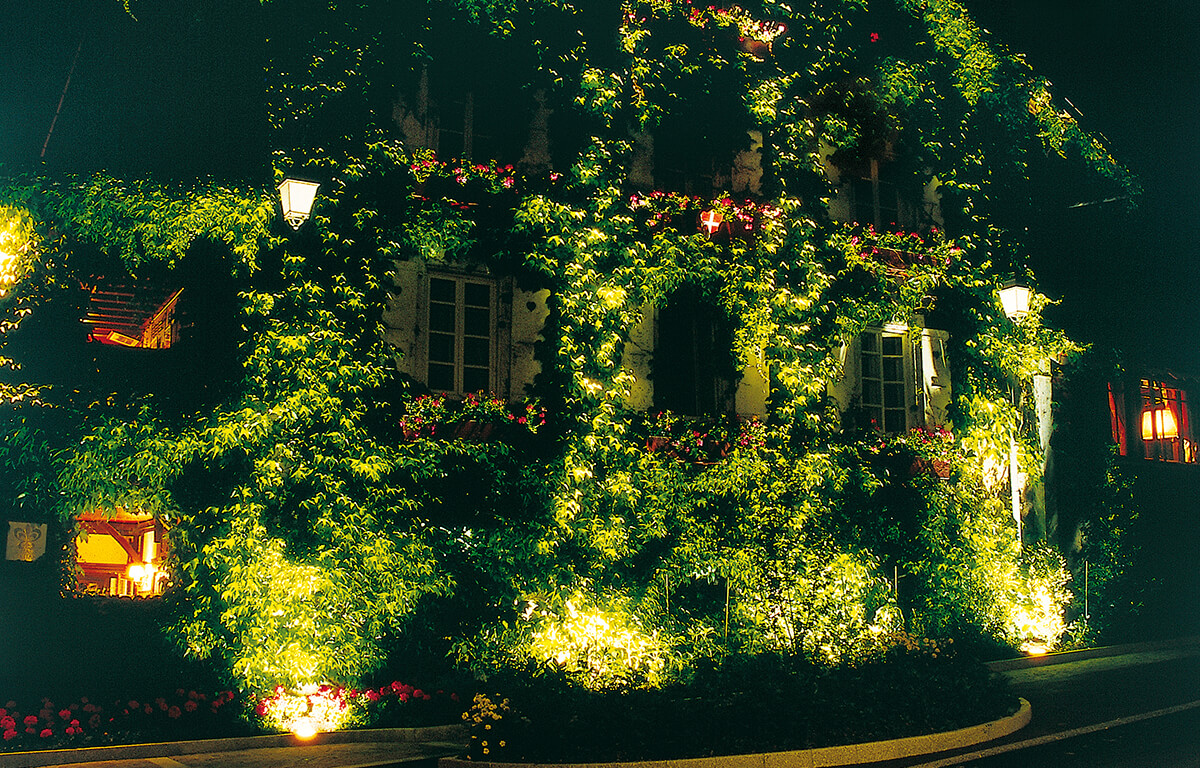

For linear illumination of buildings, facades and public areas.
Description
- Protection system IP67
- Entirely made of stainless steel 316Ti 1.4571

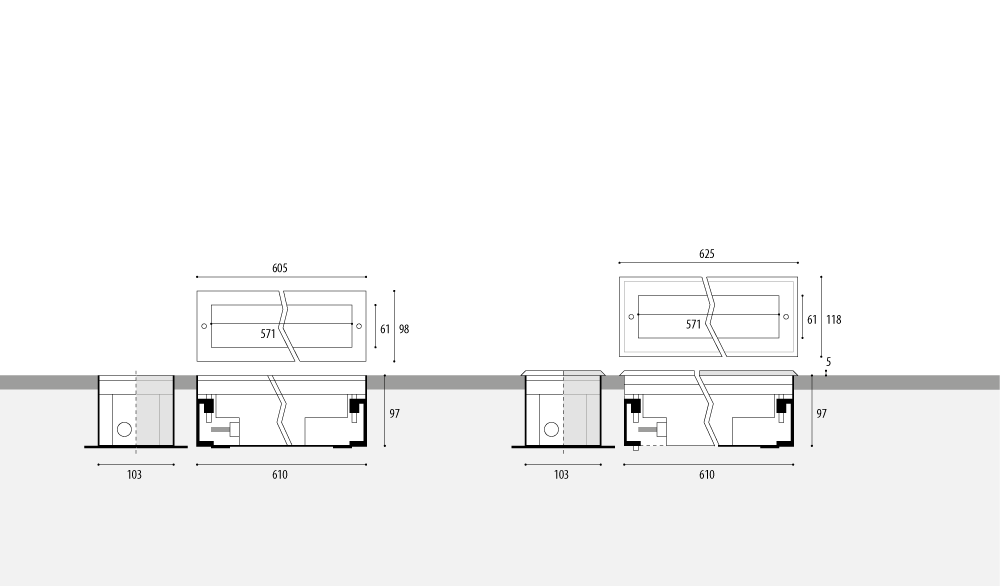

- Flush-mounted or rectangular cover, height 5 mm
- POW-LED cold white, warm white, neutral white, 230 V
- SMD-LED cold white, warm white, neutral white, 230 V
- POW-LED RGB 350 mA
- operating mode: constant current
- T16
- Linear light distribution
- symmetrical/asymmetrical T16
- +/- 15° adjustable POW-LED
- SMD-LED with diffus glass as an orientation lamp
- POW-LED-Platine temperatur control (NTC)
- Installation housing available as an option, with option for linear connection to an expansion housing (only in conjunction with a flush-mounted cover)
- Supplied with light source, 3 m of underwater cable and connection box
Notes/Options
- Glass surface temperature below 75° (Cool Contact)
- Special designs and customer-specific equipment available on request
- In public areas we recommend using a non-slip glass. See accessories.
- Radation Angle: POW-LED: 10°, 30°, 45°
- T5 Coloured light sources available
- SMD-LED RGB available
- Variant as surface-mounted spotlight available (tiltable from 180 °)
Accessories / Housings
4.3060.02.00
- Anti-skid coating
4.3060.03.00
- glass disc, frosted
- for softer light distribution (light loss approx. -15%)
4.0003.30.60
- anti-glare louvre
4.3060.00.00
- Installation housing
- out of 316L stainless steel with 2 terminating elements
4.3060.01.00
- Extension housing
- out of 316L stainless steel with 2 junction elements
- only for flush cover
| Article number | Lamps | Lumen | Light colour | Wattage | Current/Voltage | Radation angle | Temperature | Cable, installs | |
|---|---|---|---|---|---|---|---|---|---|
| Flush cover | |||||||||
| T16 | |||||||||
| 4.3060.10.07 | T5 | 1.750lm | 2700K | 24W | symmetrisch | <55°C | UW, 3x1,5 qmm | ||
| 4.3060.11.07 | T5 | 1.750lm | 2700K | 24W | asymmetrisch | <55°C | UW, 3x1,5 qmm | ||
| POW-LED, Radation Angle 30° (medium) | |||||||||
| 4.3060.10.11 | 18 POW-LED | 2520 lm | 6000K cold white | total 24 W | 30° medium | <55°C | UW, 3x1,5 qmm | ||
| 4.3060.10.12 | 18 POW-LED | 1800 lm | 3000K warm white | total 24 W | 30° medium | <55°C | UW, 3x1,5 qmm | ||
| 4.3060.10.13 | 18 POW-LED | 1980 lm | 4500K neutral white | total 24 W | 30° medium | <55°C | UW, 3x1,5 qmm | ||
| 4.3060.10.19 | 18 POW-LED | RGB | all on 23 W | 30° medium | <55°C | UW, 6x1,0 + 2x0,5 qmm | |||
| SMD-LED | |||||||||
| 4.3060.10.01 | SMD-LED cold white | 6500K | 5 W | diffus | <40°C | UW, 3x1,5 qmm | |||
| 4.3060.10.02 | SMD-LED warm white | 3000K | 5 W | diffus | <40°C | UW, 3x1,5 qmm | |||
| 4.3060.10.03 | SMD-LED neutral white | 4000K | 5 W | diffus | <40°C | UW, 3x1,5 qmm | |||
| Rectangular cover | |||||||||
| T16 | |||||||||
| 4.3060.40.07 | T5 | 1.750lm | 2700K | 24W | symmetrisch | <55°C | UW, 3x1,5 qmm | ||
| 4.3060.41.07 | T5 | 1.750lm | 2700K | 24W | asymmetrisch | <55°C | UW, 3x1,5 qmm | ||
| POW-LED, Radation Angle 30° (medium) | |||||||||
| 4.3060.40.11 | 18 POW-LED | 2520 lm | 6000K cold white | total 24 W | 30° medium | <55°C | UW, 3x1,5 qmm | ||
| 4.3060.40.12 | 18 POW-LED | 1800 lm | 3000K warm white | total 24 W | 30° medium | <55°C | UW, 3x1,5 qmm | ||
| 4.3060.40.13 | 18 POW-LED | 1980 lm | 4500K neutral white | total 24 W | 30° medium | <55°C | UW, 3x1,5 qmm | ||
| 4.3060.40.19 | 18 POW-LED | RGB | all on 23 W | 30° medium | <55°C | UW, 6x1,0 + 2x0,5 qmm | |||
| SMD-LED | |||||||||
| 4.3060.40.01 | SMD-LED cold white | 6500K | 5 W | diffus | <40°C | UW, 3x1,5 qmm | |||
| 4.3060.40.02 | SMD-LED warm white | 3000K | 5 W | diffus | <40°C | UW, 3x1,5 qmm | |||
| 4.3060.40.03 | SMD-LED neutral white | 4000K | 5 W | diffus | <40°C | UW, 3x1,5 qmm | |||
