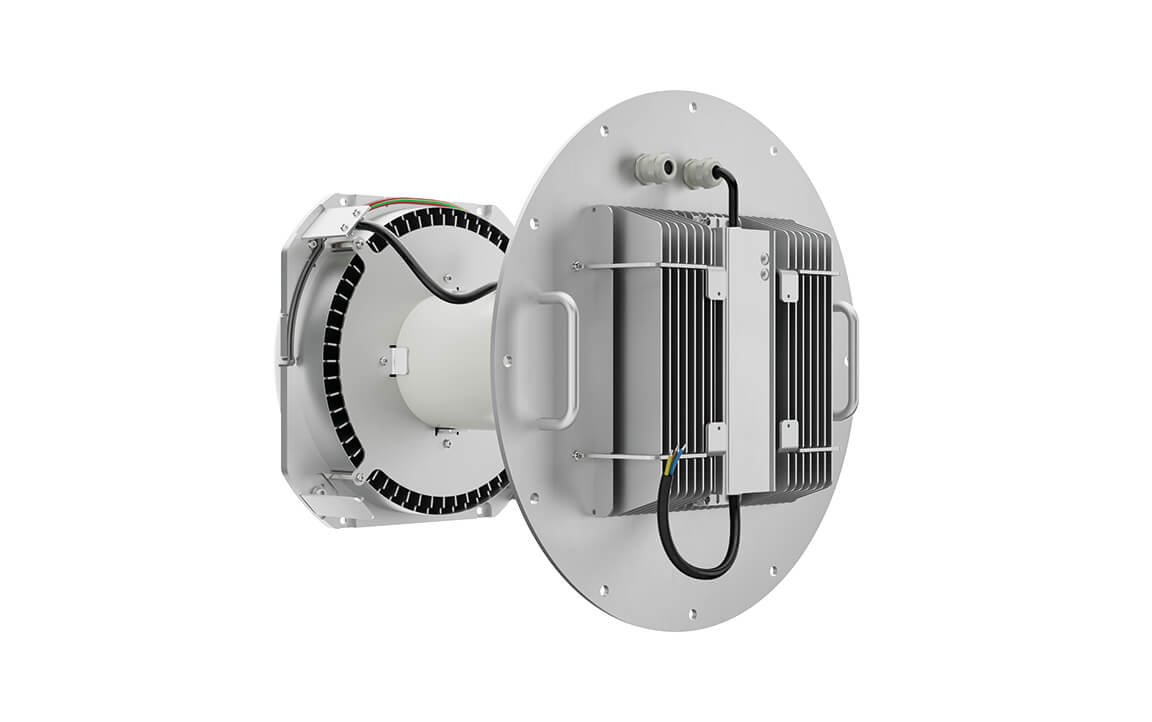

4.2014Retrofit-Spotlight-Insertion for 4.2000
For easy retrofitting of existing spotlights series 4.2000
Description
- Retrofit insertion for installation in existing spotlights 4.2000
- for retrofitting halogen to LED
- Entirely made of high-quality anodised aluminium
- HIGH-POW-LED cold white, warm white, neutral white, 24 V-DC
- operating mode: 230V
- temperature controlled (onboard)
- surge protection

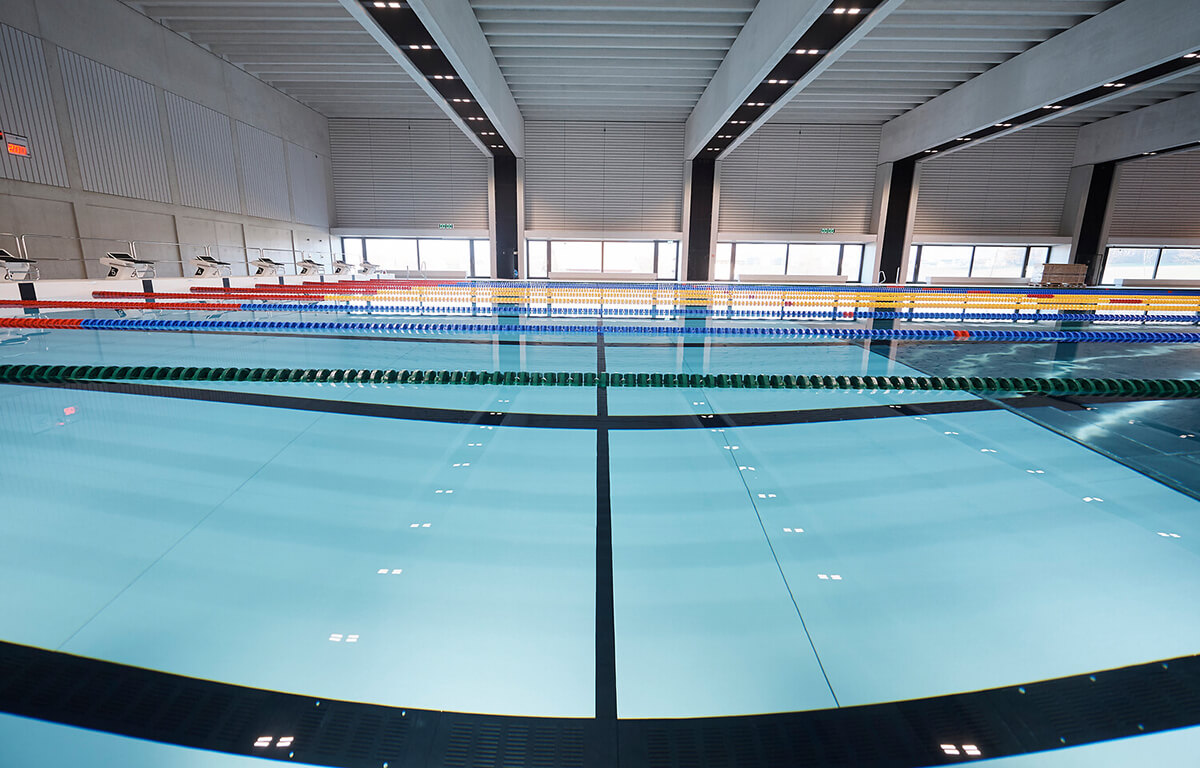

- light distribution especially for swimming pool lighting

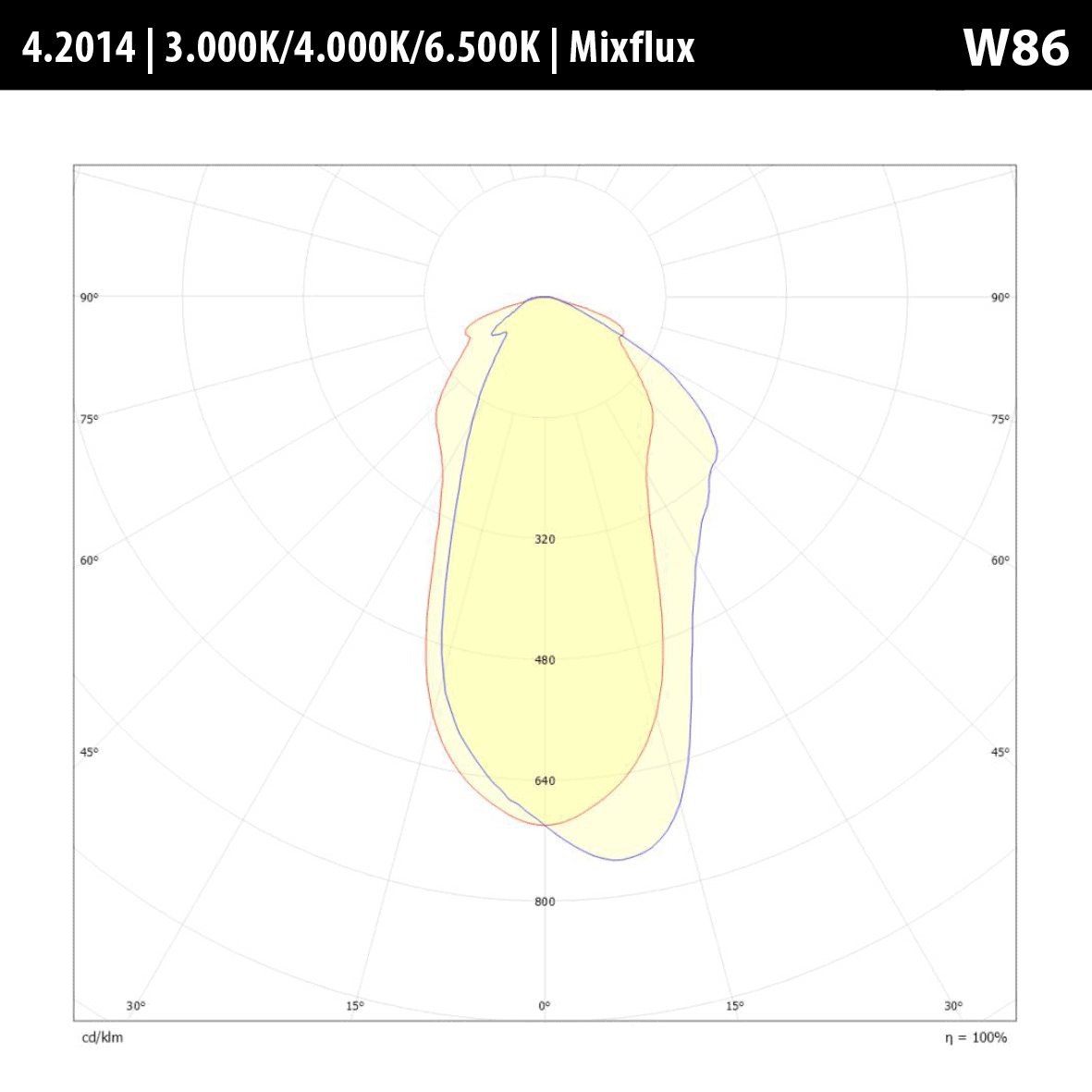

- wide- and deep beam angle
- Delivered ready for connection with end cover
- Constant-voltage power source is preassembled (incl.)
Notes/Options
- Replacement/exchange requires separate agreements.

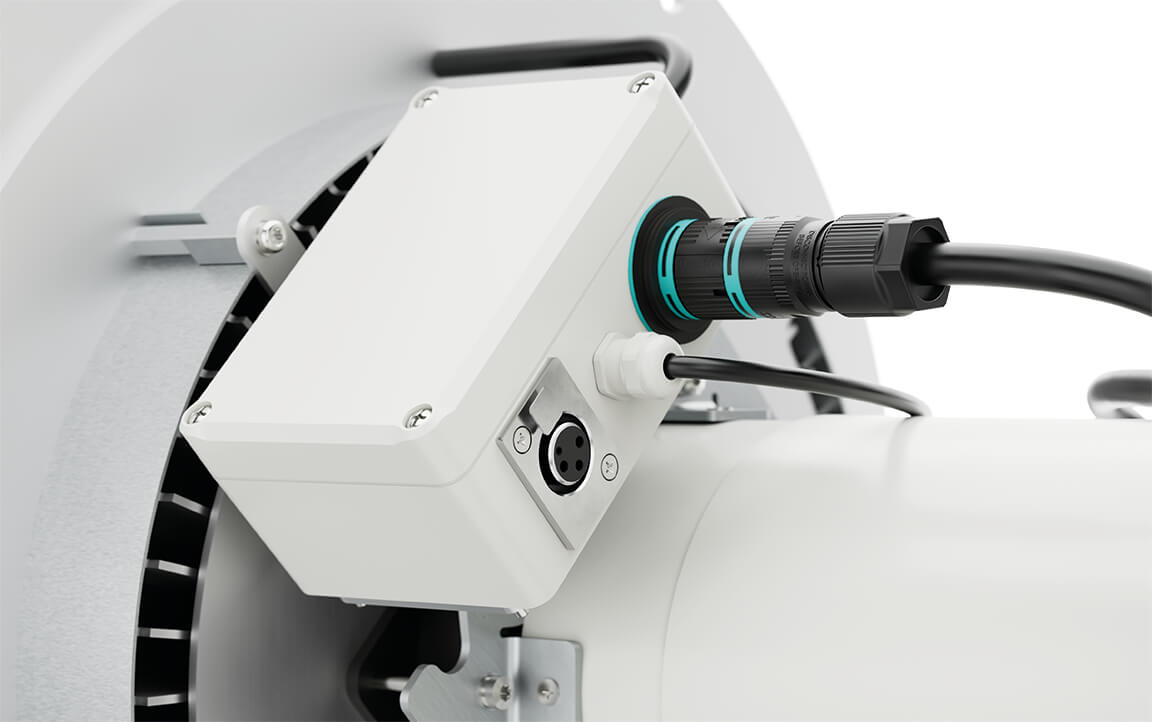

- Dimmable with additionally available DMX extension
| Article number | Lamps | Lumen | Light colour | Wattage | Voltage | Radation angle | |||
|---|---|---|---|---|---|---|---|---|---|
| Insertion for spotlight 4.2000 | |||||||||
| 4.2014.00.11 | High-POW-LED | 30940 lm | 6500K cold white | total 180 W | CV 24 V-DC | asymmetric Mixflux | |||
| 4.2014.00.12 | High-POW-LED | 30220 lm | 3000K warm white | total 180 W | CV 24 V-DC | asymmetric Mixflux | |||
| 4.2014.00.13 | High-POW-LED | 31470 lm | 4000K neutral white | total 180 W | CV 24 V-DC | asymmetric Mixflux | |||
