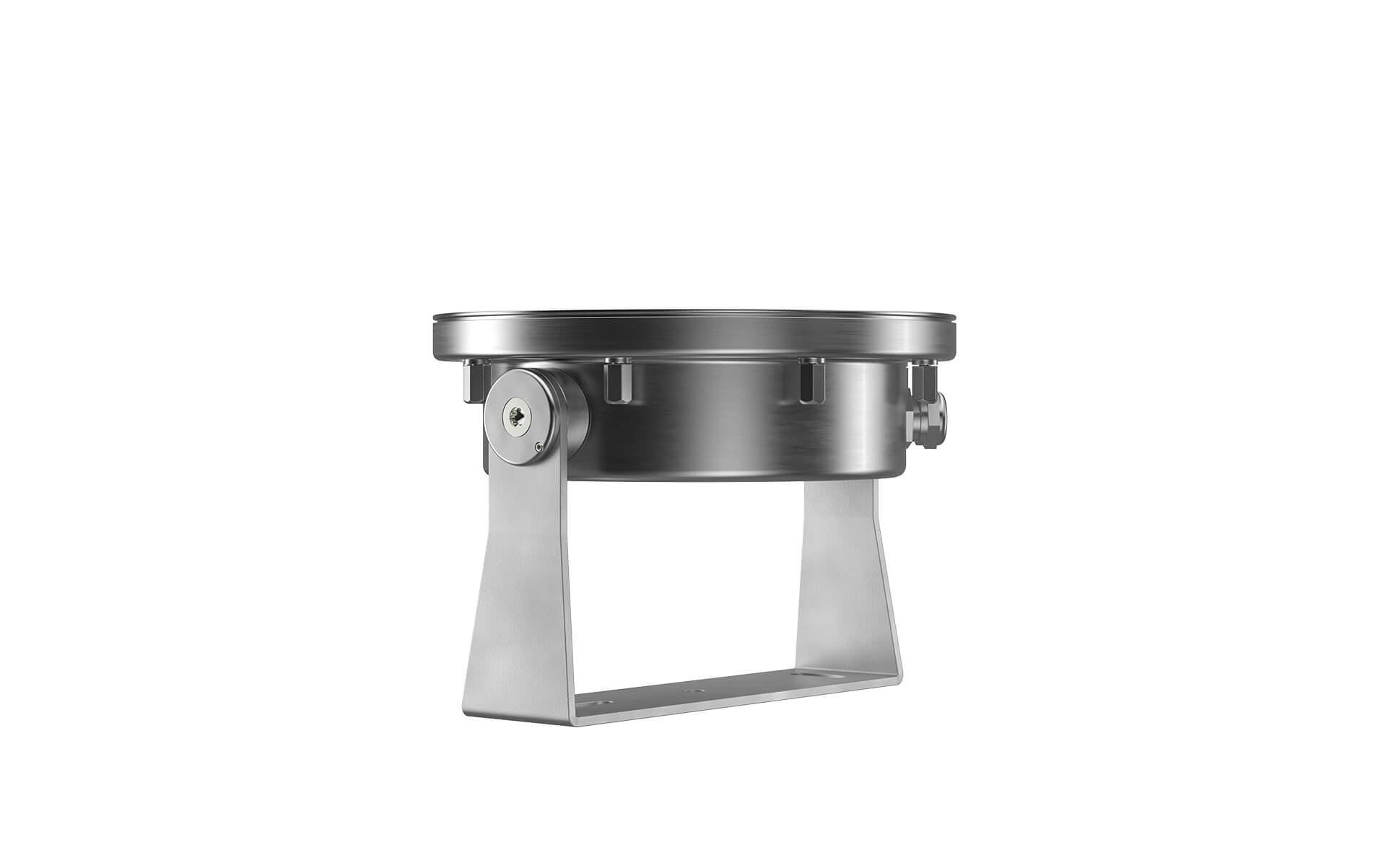

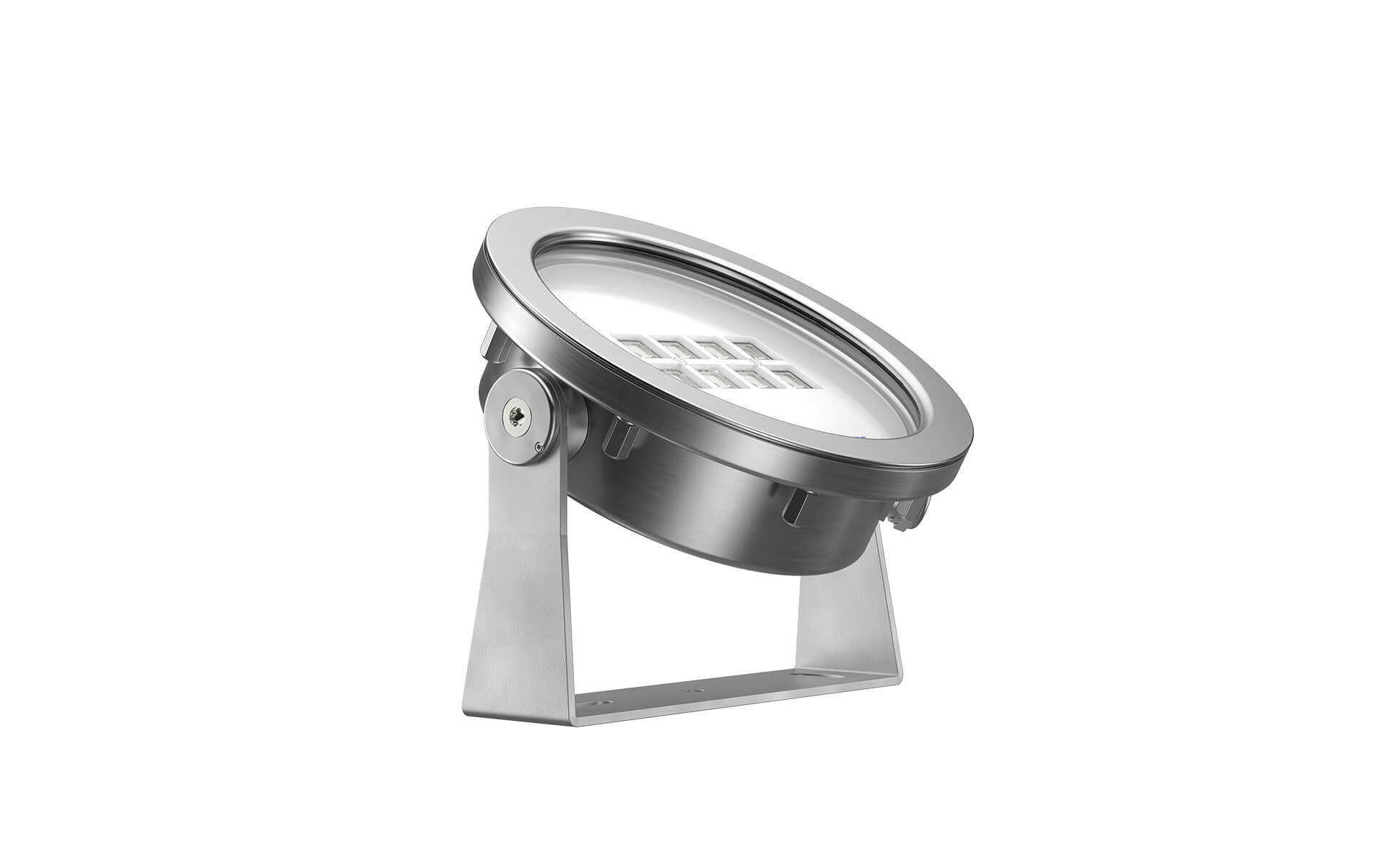

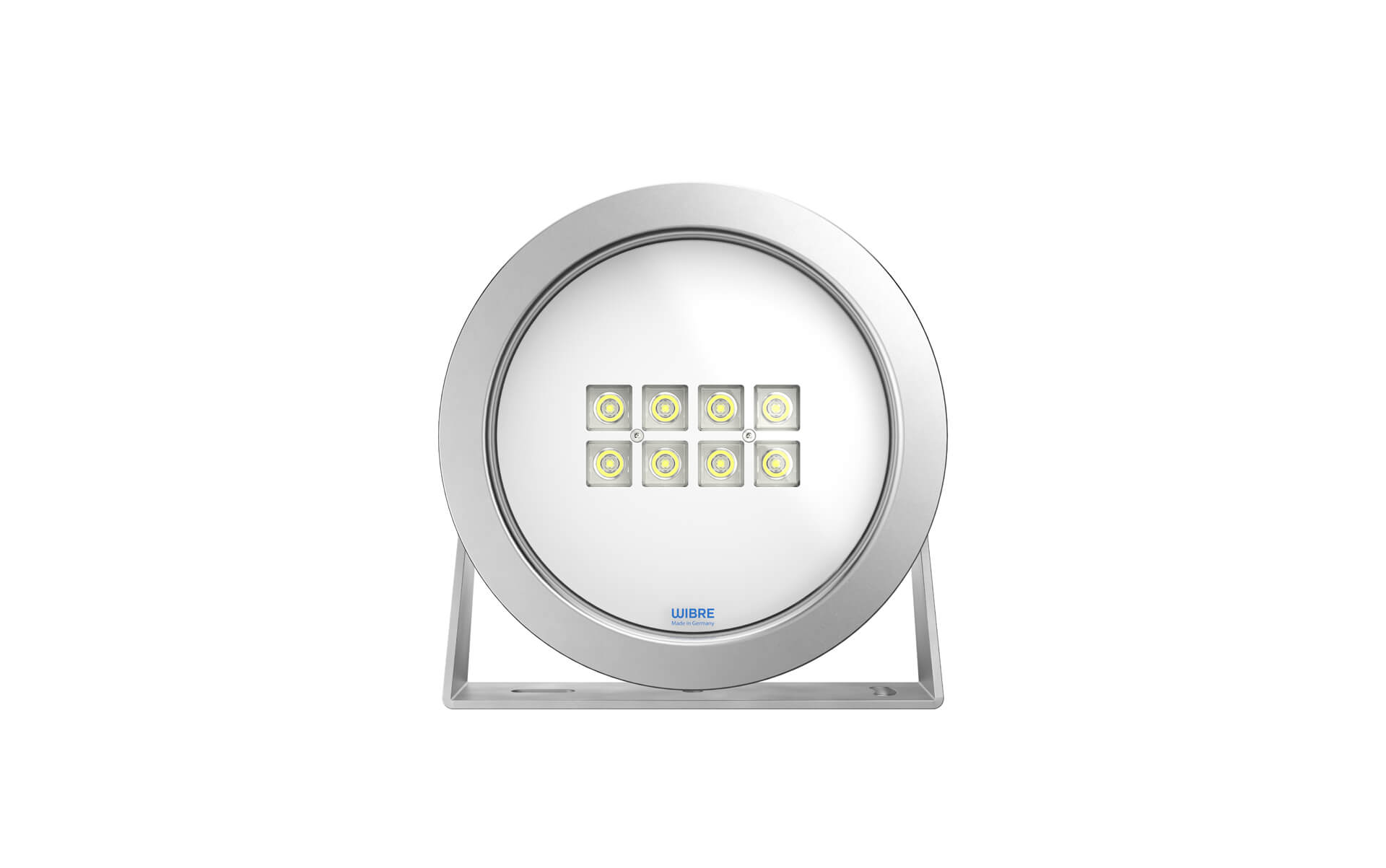

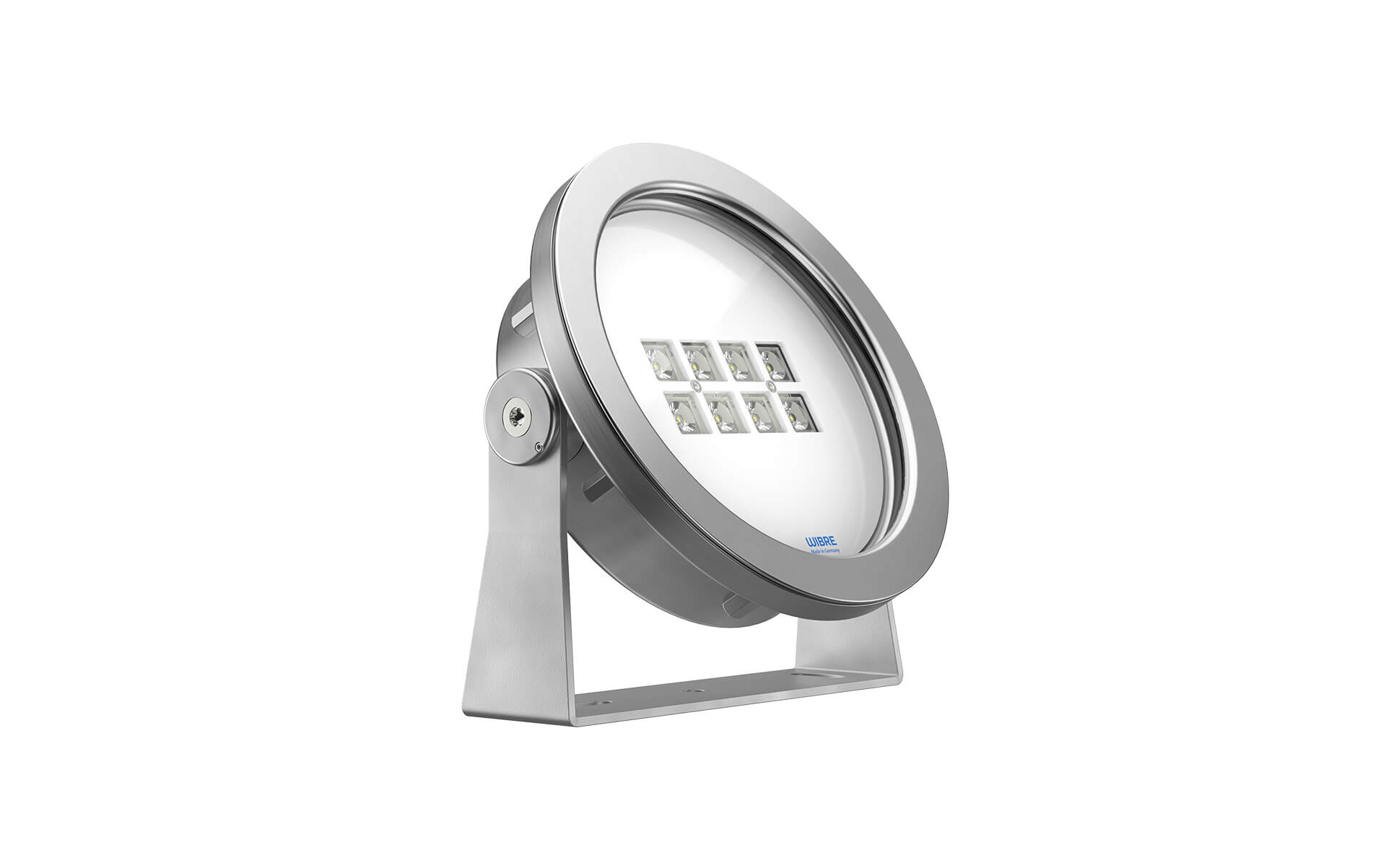

4.0290Surface-mounted Spotlight
Up to 4600 lumen light intensity

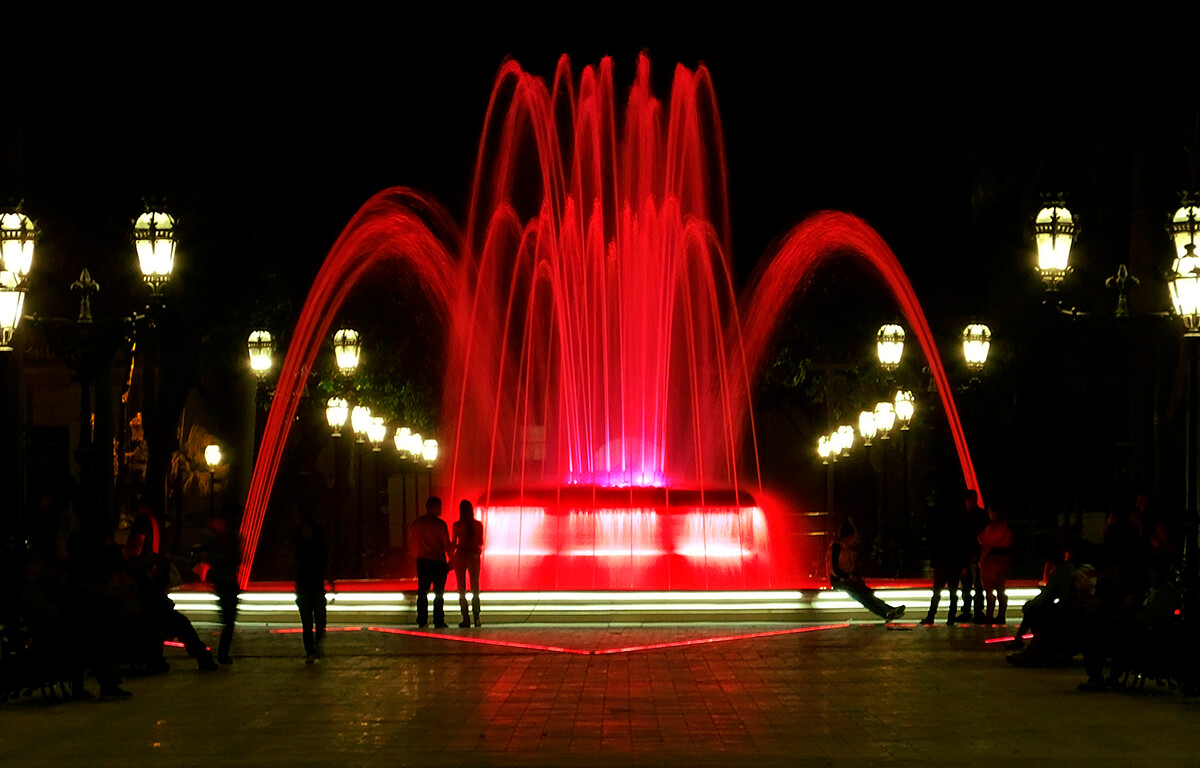

Perfect for fountains and waterside architecture
Description
- Protection class IP68 – up to 15m water depth
- Protection class IP69 - protection against high pressure and high jet water temperatures
- Entirely made of stainless steel 316Ti 1.4571, electropolished

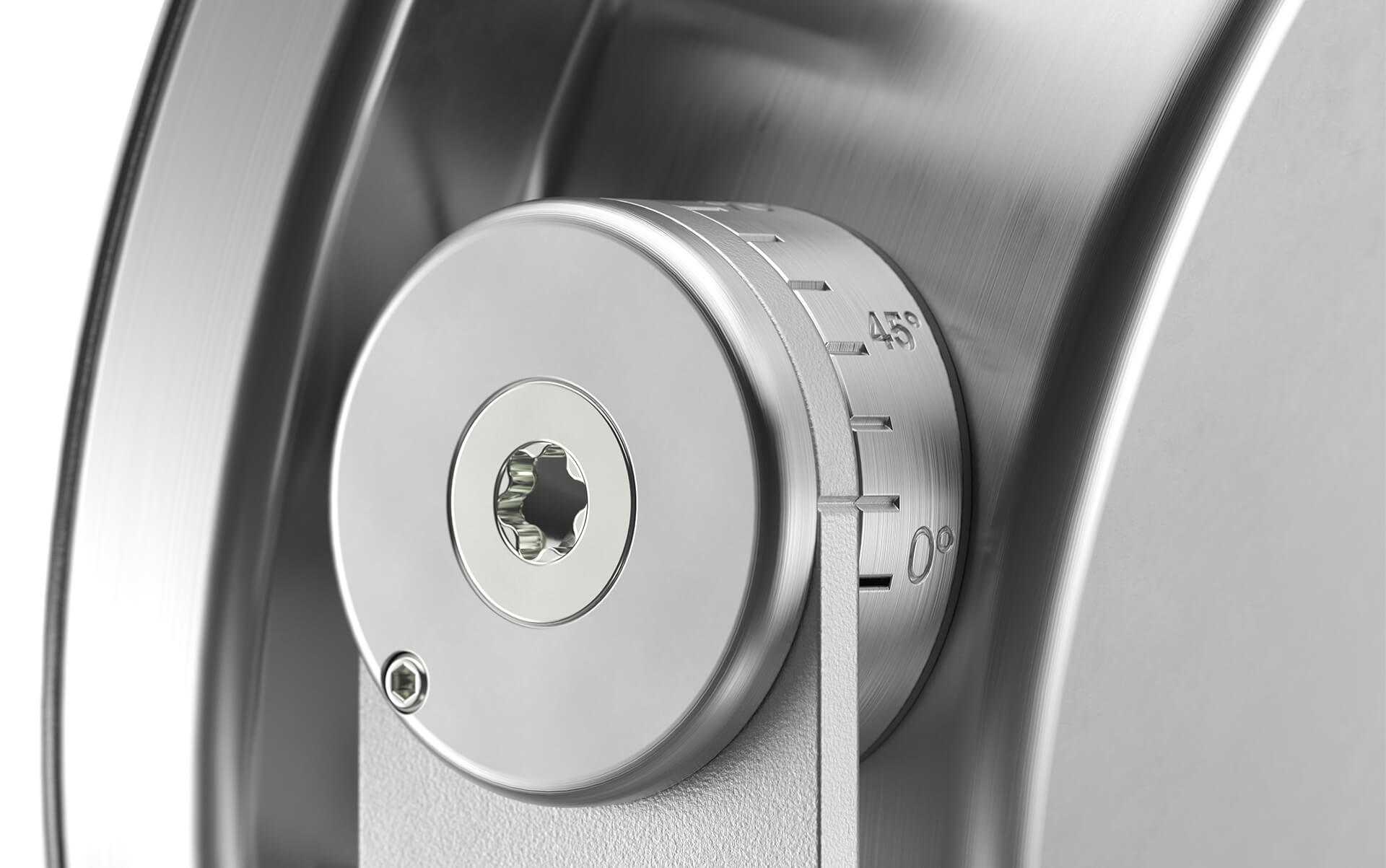

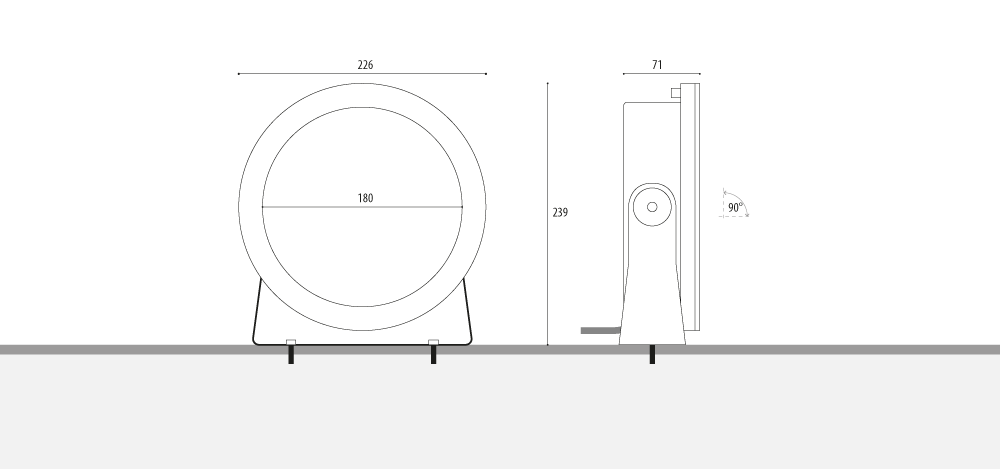

- Mounting foot adjustable through 90°
- POW-LED cold white, warm white, neutral white
- Multichip POW-LED RGB-W
- operating mode: constant current
- temperature controlled (onboard)
- surge protection
- Rotationally symmetric light distribution
- Constant-current power source/RGB controller external
- Supplied with lamp and 5 m of underwater cable
Notes/Options
- Radation Angle: 10° Spot, 25° Medium, 50° Wide, 120° Flood, 50x15° elliptical
- POW-LED monochrome, single colour in green, red, amber, blue, capri blue, 2700K
- Version with integrated power supply available (230 V, housing depth 150 mm).
- Dynamic White possible (3000-6000°K)
Accessories / Housings
9.0290.00.20
- Additional disc, frosted
- for softer light distribution (light loss approx. -15%)
35.40290.0001
- anti-glare louvre
- black, for POW-LED
| Article number | Lamps | Lumen | Light colour | Wattage | Current | Radation angle | Cable, installs | ||
|---|---|---|---|---|---|---|---|---|---|
| Versions: Underwater environments only | |||||||||
| 4.0290.00.11 | 8 POW-LED | 4600 lm | 6.000K cold white | total 31 W | CC 2400mA @12 V-DC | 50° symmetrisch | UW, 2x2,5 qmm | ||
| 4.0290.00.12 | 8 POW-LED | 3760 lm | 3.000K warm white | total 31 W | CC 2400mA @12 V-DC | 50° symmetrisch | UW, 2x2,5 qmm | ||
| 4.0290.00.13 | 8 POW-LED | 4024 lm | 4.500K neutral white | total 31 W | CC 2400mA @12 V-DC | 50° symmetrisch | UW, 2x2,5 qmm | ||
| 4.0290.00.41 | 8 Multichip POW-LED | cold white: 1160 lm | RGB-CW cold white 6000K | all on 50 W | CC 700mA @12 V-DC | 50° symmetrisch | UW, 10x0,5 qmm | ||
| 4.0290.00.42 | 8 Multichip POW-LED | warm white: 1000 lm | RGB-WW warm white 3000K | all on 50 W | CC 700mA @12 V-DC | 50° symmetrisch | UW, 10x0,5 qmm | ||
| 4.0290.00.43 | 8 Multichip POW-LED | neutral white: 1080 lm | RGB-NW neutral white 4500K | all on 50 W | CC 700mA @12 V-DC | 50° symmetrisch | UW, 10x0,5 qmm | ||
Related products

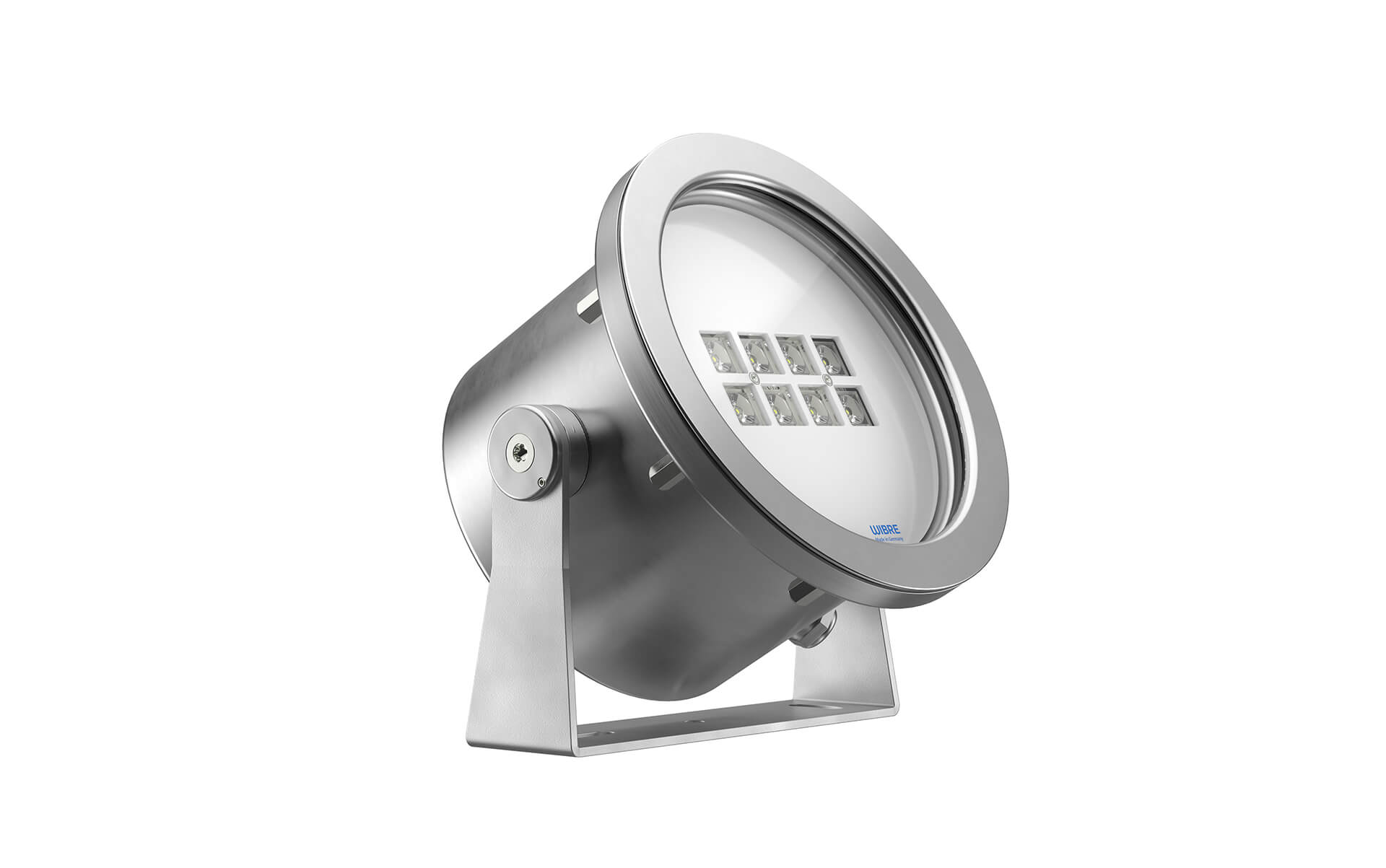

Surface-mounted Spotlight 4.0290.15
- Up to 4600 lumen light intensity
- Perfect for fountains and waterside architecture

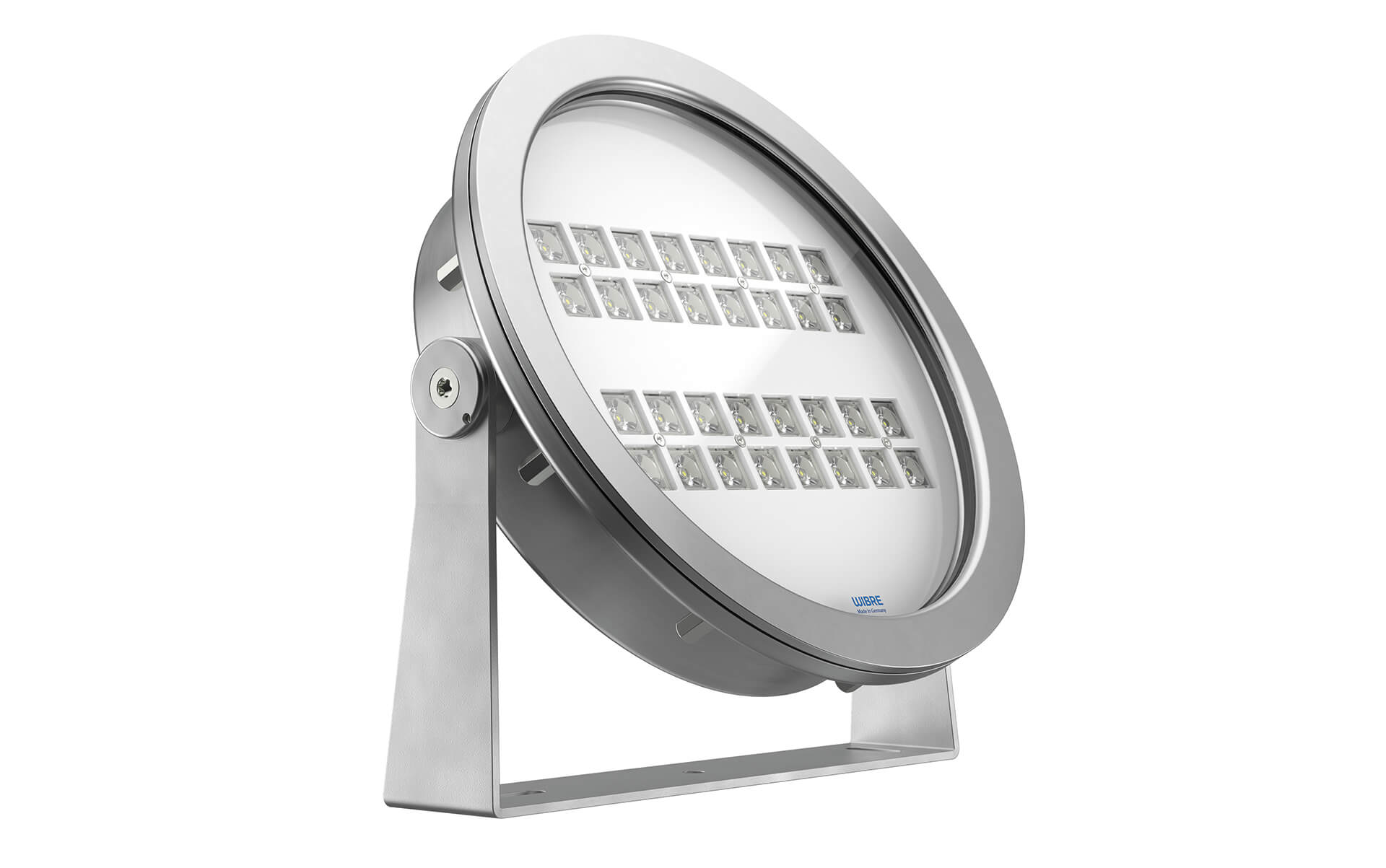

Surface-mounted Spotlight 4.0490
