4.0271Swimming pool Light

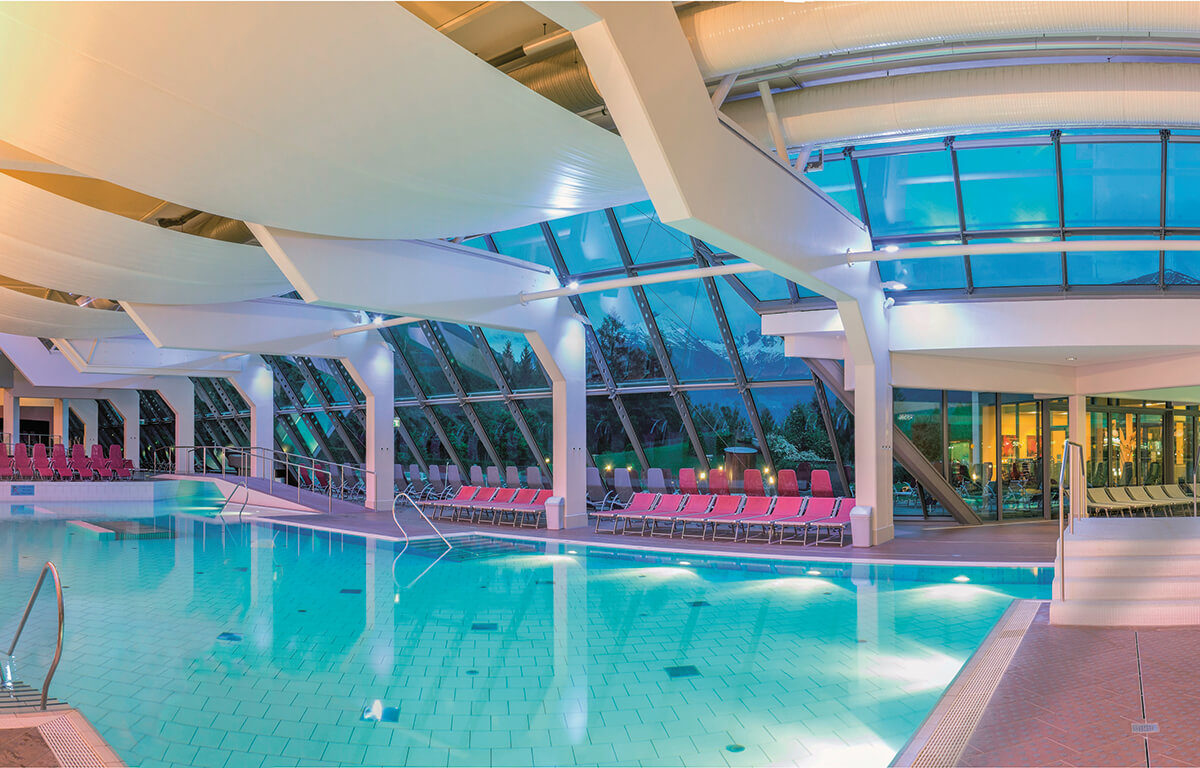

For illuminating medium and large swimming pools.
Description
- Protection class IP68 – up to 3m water depth
- Entirely made of stainless steel 316Ti 1.4571
- Round attachment cover, made of stainless steel 316Ti, height 13 mm
- For all standard pool types

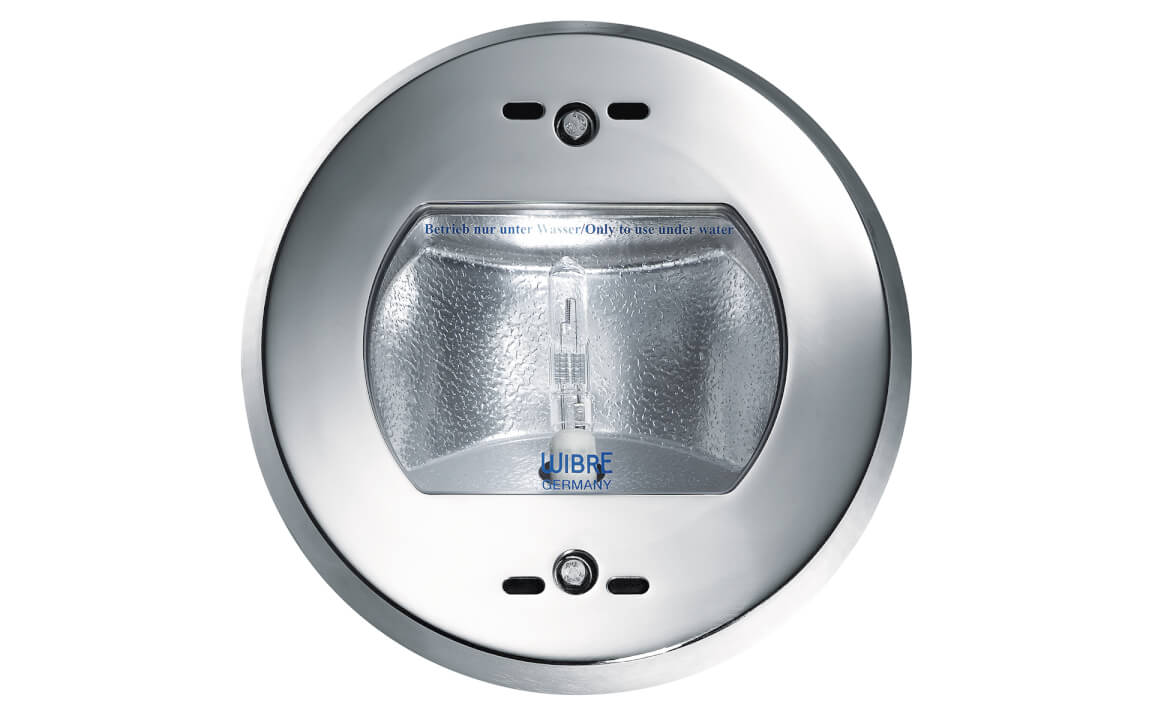

- QT12 or QT16 light sources

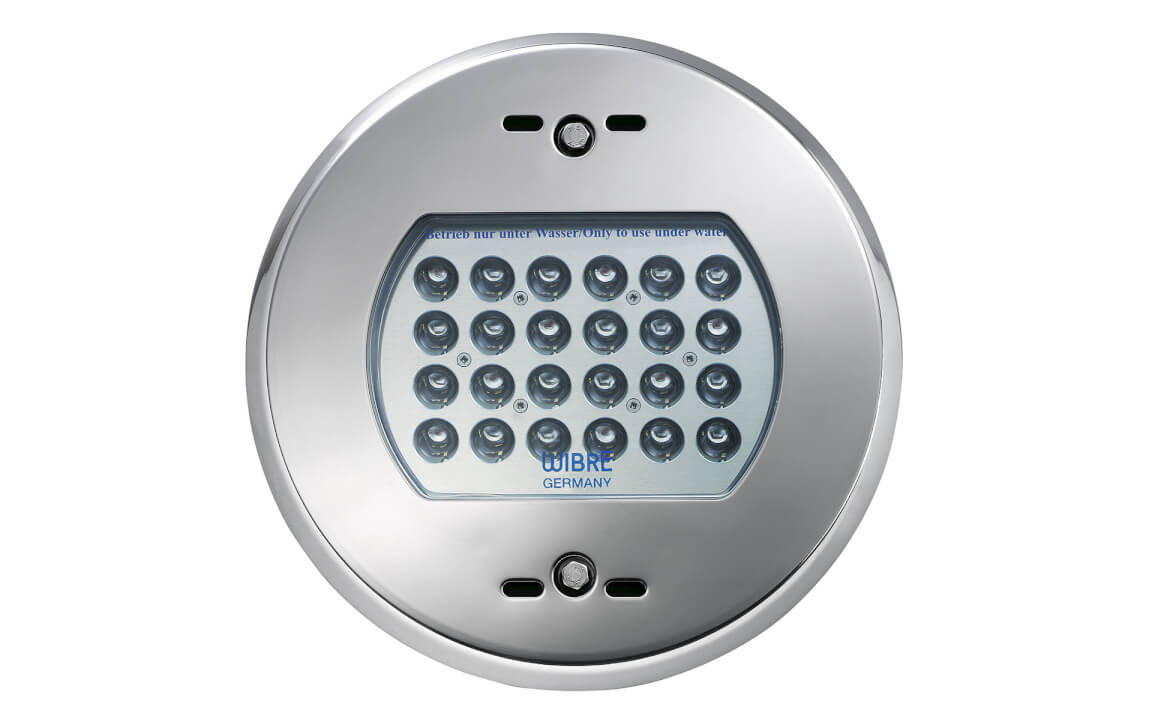

- POW-LED white 12 V-DC
- POW-LED capriblue 12 V-DC
- POW-LED RGB 12 V-DC
- POW-LED white 24 V-DC
- POW-LED RGB 24 V-DC
- optimation of beam angle character
- POW-LED-Platine temperatur control (NTC)

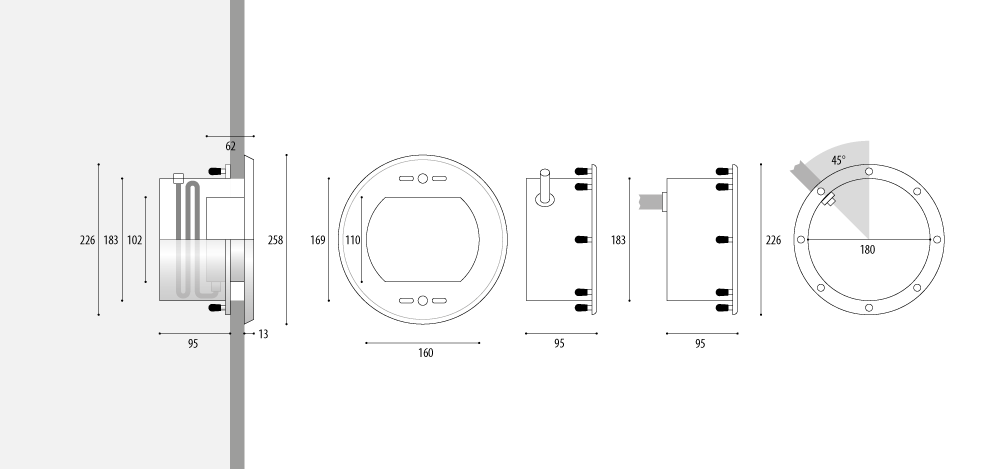

- Beam angle: 80° symmetric/horizontal and 45° asymmetric/vertical (halogen)
- Light source can be changed without draining the water (halogen)

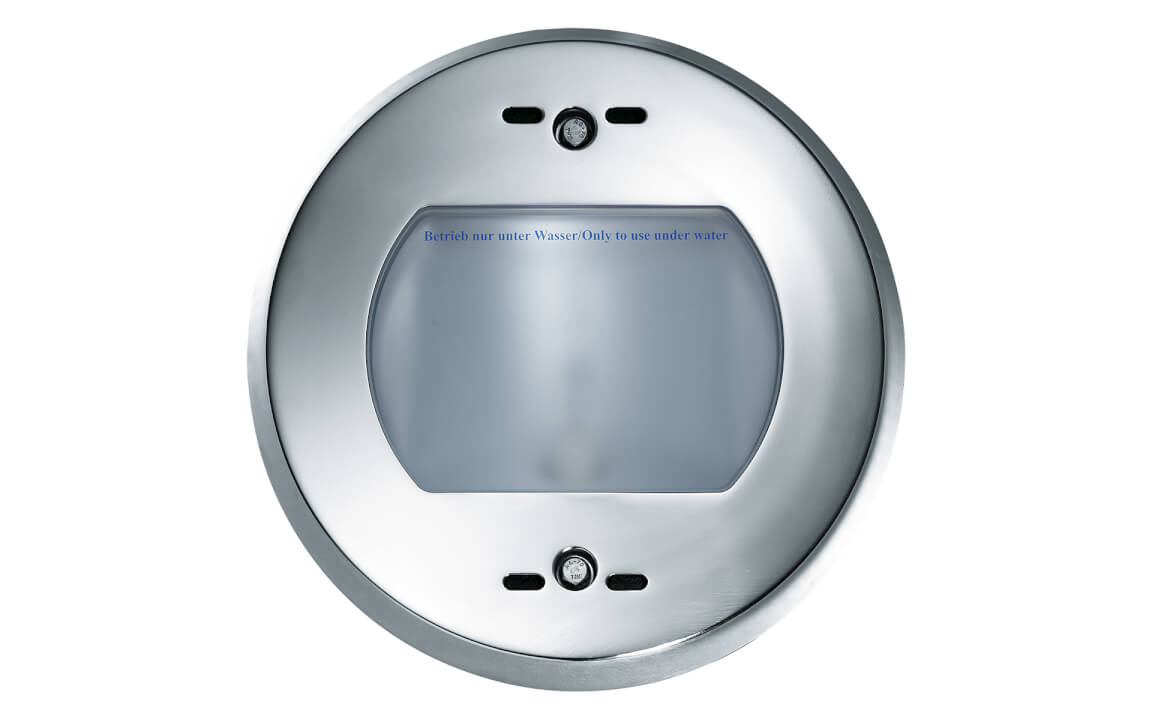

- type 4.0272 with frosted glass for soft light distribution (light losses approx. 15 %)
- Supplied with light source and special underwater cable already connected
Notes/Options
- An installation housing is required for a new installation. Please order separately.
- Must only be operated with a WIBRE power supply or controler
- Monochrome POW-LED available in red, green, blue, amber and warm white
Accessories / Housings
4.0274.00.25
- pressure flange
- for thin-walled pools or pools with fitted plastic foil
4.0274.55.25
- gluing and pressure flange
- for adhesive/foil coating with pressure flange
4.0274.55.55
- gluing flange
- for adhesive/foil coating
9.8167.00.00
- mounting plate
- for replacement to Wibre, square, grade 316, 290 x 290 x 11 mm
9.8267.00.00
- mounting plate
- for replacement to Wibre, round, grade 316, ø 302 x 9 mm
4.0265.05.00
- colour disk, for halogene
- red
4.0265.06.00
- colour disk, for halogene
- blue
4.0265.07.00
- colour disk, for halogene
- green

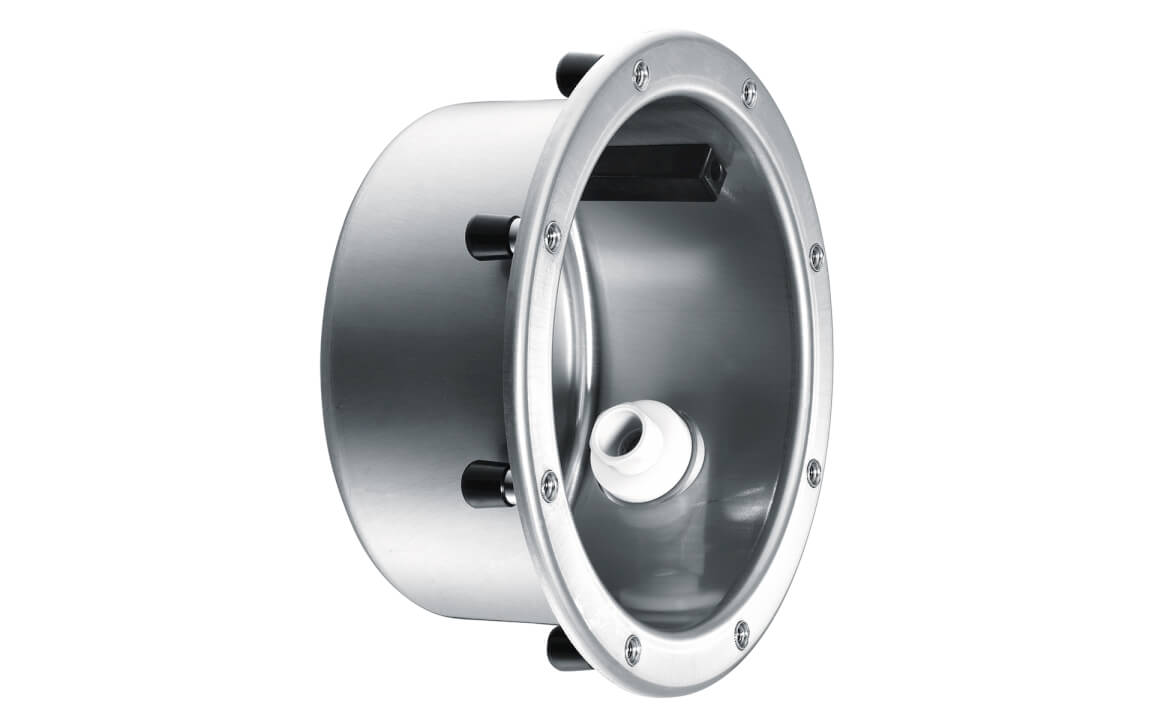

4.0274.00.00
- built in pot of 316L stainless steel with 1,5 m cable duct, cable entry from side
4.0274.00.50
- pressure flange
- for thin-walled pools or pools with fitted plastic foil
| Article number | Lamps | Lumen | Light colour | Wattage | Current/Voltage | Cable, installs | |||
|---|---|---|---|---|---|---|---|---|---|
| Versions: Underwater environments only | |||||||||
| halogen | |||||||||
| 4.0271.03.10 | QT12 | 2.200lm | 3000K | 100W | UW, 2x2,5 qmm | ||||
| 4.0271.03.17 | QT16 | 5.100lm | 3000K | 175W | UW, 2x2,5 qmm | ||||
| 4.0271.03.20 | QT16 | 5.800lm | 3000K | 200W | UW, 2x2,5 qmm | ||||
| 4.0271.03.40 | QT16 | 11.600lm | 3000K | 400W | UW, 2x2,5 qmm | ||||
| 4.0271.06.10 | QT12 | 2.200lm | 3000K | 100W | UW, 2x2,5 qmm | ||||
| 4.0271.06.17 | QT16 | 5.100lm | 3000K | 175W | UW, 2x4,0 qmm | ||||
| 4.0271.06.20 | QT16 | 5.800lm | 3000K | 200W | UW, 2x2,5 qmm | ||||
| 4.0271.06.40 | QT16 | 11.600lm | 3000K | 400W | UW, 2x2,5 qmm | ||||
| 4.0271.10.10 | QT12 | 2.200lm | 3000K | 100W | UW, 2x2,5 qmm | ||||
| 4.0271.10.17 | QT16 | 5.100lm | 3000K | 175W | UW, 2x4,0 qmm | ||||
| 4.0271.10.20 | QT16 | 5.800lm | 3000K | 200W | UW, 2x2,5 qmm | ||||
| 4.0271.10.40 | QT16 | 11.600lm | 3000K | 400W | UW, 2x4,0 qmm | ||||
| POW-LED 24 V-DC | |||||||||
| 4.0271.00.01 | 18 POW-LED | 2700 lm | 6000K cold white | total 50 W | UW, 2x2,5 qmm | ||||
| 4.0271.00.09 | 24 POW-LED | RGB | all on 30 W | UW, 6x1,0 + 2x0,5 qmm | |||||
| POW-LED 12 V-DC | |||||||||
| 4.0271.00.11 | 27 POW-LED | 4050 lm | 6000K cold white | total 85 W | UW, 6x1,0 + 2x0,5 qmm | ||||
| 4.0271.00.12 | 27 POW-LED | 3510 lm | 3000K warm white | total 85 W | UW, 6x1,0 + 2x0,5 qmm | ||||
| 4.0271.00.13 | 27 POW-LED | 3780 lm | 4500K neutral white | total 85 W | UW, 6x1,0 + 2x0,5 qmm | ||||
| 4.0271.00.19 | 27 POW-LED | RGB | all on 85 W | UW, 6x1,0 + 2x0,5 qmm | |||||
| 4.0271.00.26 | 27 POW-LED | capri blue (9 x blue, 9 x green, 9 x white) | total 85 W | UW, 6x1,0 + 2x0,5 qmm | |||||
| Halogene - glass diffus | |||||||||
| 4.0272.03.10 | QT12 | 2.200lm | 3000K | 100W | UW, 2x2,5 qmm | ||||
| 4.0272.03.17 | QT16 | 5.100lm | 3000K | 175W | UW, 2x2,5 qmm | ||||
| 4.0272.03.20 | QT16 | 5.800lm | 3000K | 200W | UW, 2x2,5 qmm | ||||
| 4.0272.03.40 | QT16 | 11.600lm | 3000K | 400W | UW, 2x2,5 qmm | ||||
| 4.0272.06.10 | QT12 | 2.200lm | 3000K | 100W | UW, 2x2,5 qmm | ||||
| 4.0272.06.17 | QT16 | 5.100lm | 3000K | 175W | UW, 2x4,0 qmm | ||||
| 4.0272.06.20 | QT16 | 5.800lm | 3000K | 200W | UW, 2x2,5 qmm | ||||
| 4.0272.06.40 | QT16 | 11.600lm | 3000K | 400W | UW, 2x2,5 qmm | ||||
| 4.0272.10.10 | QT12 | 2.200lm | 3000K | 100W | UW, 2x2,5 qmm | ||||
| 4.0272.10.17 | QT16 | 5.100lm | 3000K | 175W | UW, 2x4,0 qmm | ||||
| 4.0272.10.20 | QT16 | 5.800lm | 3000K | 200W | UW, 2x2,5 qmm | ||||
| 4.0272.10.40 | QT16 | 11.600lm | 3000K | 400W | UW, 2x4,0 qmm | ||||
