4.0197Recessed spotlight

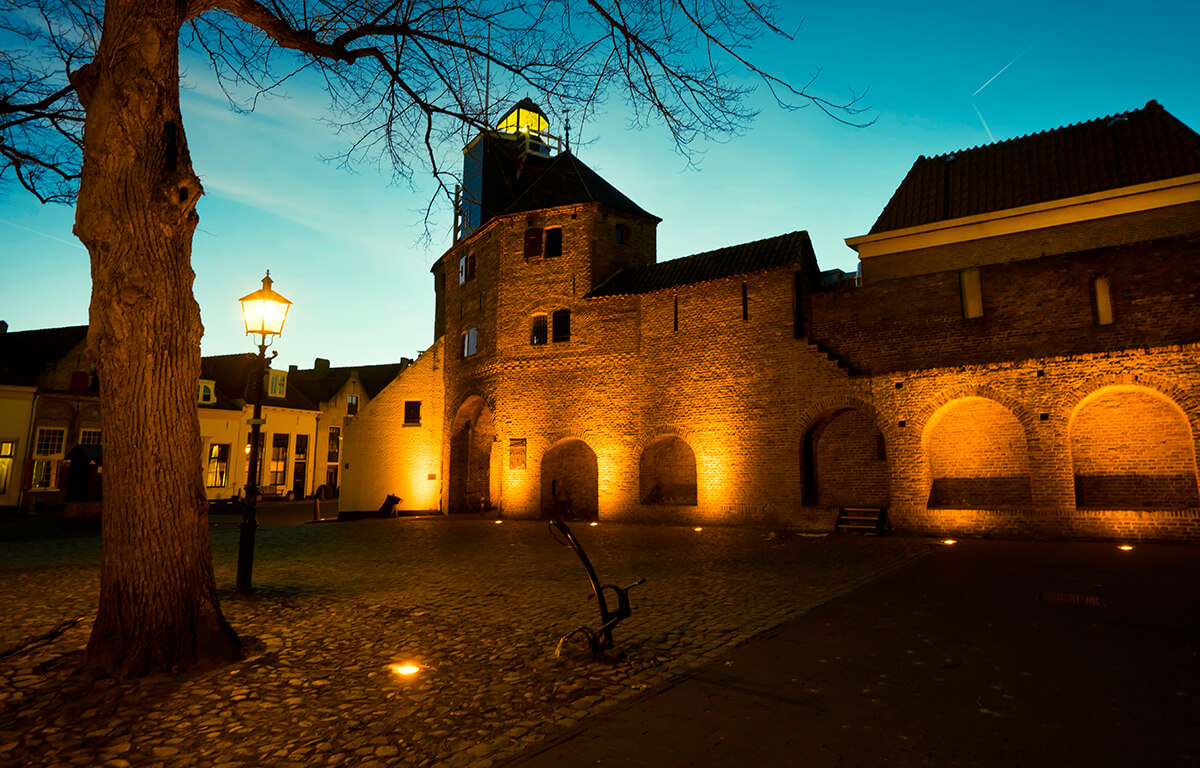

For illuminating buildings, facades, outdoor facilities and trees.
Description
- Protection system IP67
- Protection class IP69 - protection against high pressure and high jet water temperatures
- Entirely made of stainless steel 316Ti 1.4571

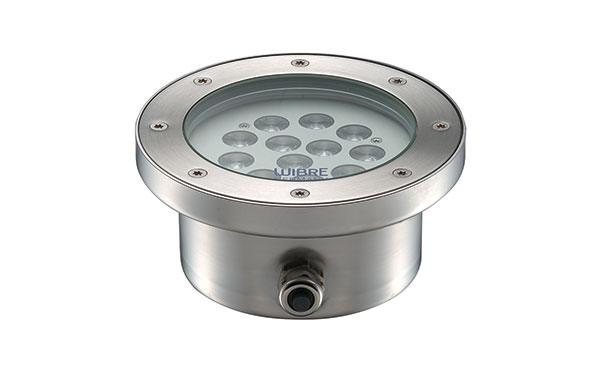

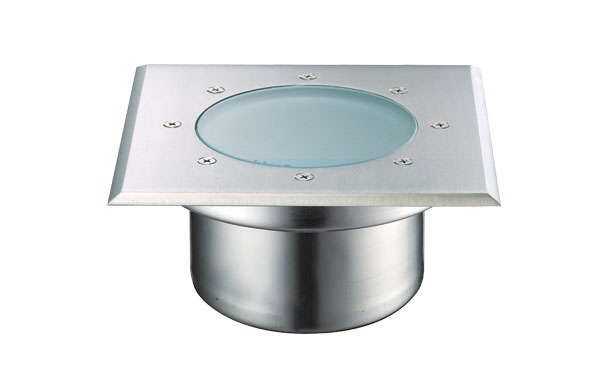

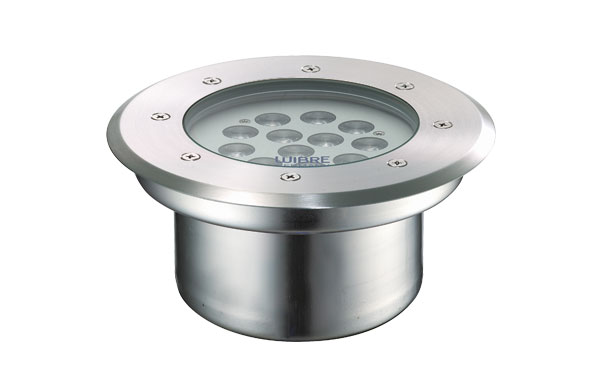

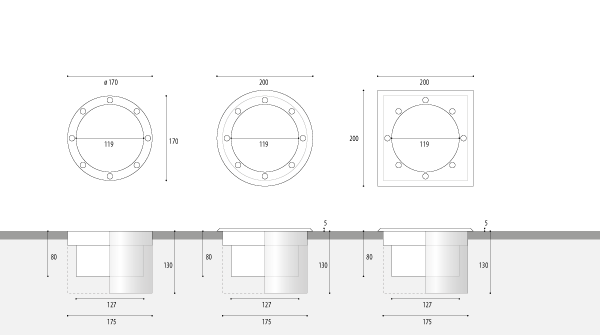

- Flush-mounted cover, round and square cover, height 5 mm
- operating mode: constant current
- POW-LED cold white, warm white, neutral white, CC
- POW-LED RGB
- operating mode: constant voltage
- POW-LED cold white, warm white, neutral white, CV
- Rotation-symmetric light distribution
- Temperature-resistant silicon seal
- Toughened safety glass (ESG) – withstands loads of up to 1500 kg
- Cable gland PG13,5, nickel-plated brass
Notes/Options
- POW-LED, series-connected at 350 mA
- POW-LED in parallel connection at 12 V-DC
- In case of use of an housing, cable gland must be mounted on the ground. (Please state!)
- In public areas we recommend using a non-slip glass. See accessories.
- The installation housing can be supplied as an option (4.0197.10.95)
- Protection system IP68 (fully ready for operation with light source and cables)
- POW-LED with beam angle spot 10°, medium 30°, wide 45°, flood 90° and elliptical 15x40°
- Matt glass lens for softer light distribution (light loss approx. -15%)
- 12 V-DC dimmable with dimming module 5.0690.03.15. Note: Other cable to the spotlight is required. Requires further agreements.
Accessories / Housings
4.0197.10.95
- Installation housing out of 316Ti stainless steel
4.0003.02.02
4.0066.01.00
- glass disc, frosted
- for softer light distribution (light loss approx. -15%)
4.0066.02.00
- Anti-skid coating
| Article number | Lamps | Lumen | Light colour | Wattage | Current | Temperature | Radation angle | Cable, installs | |
|---|---|---|---|---|---|---|---|---|---|
| Flush cover | |||||||||
| POW-LED 350 mA, clear tempered glass lens | |||||||||
| 4.0197.10.01 | 12 POW-LED | 1980 lm | 6000K cold white | total 15 W | CC 350 mA | <40°C | 30° medium | UW, 2x1,5 qmm | |
| 4.0197.10.02 | 12 POW-LED | 1620 lm | 3000K warm white | total 15 W | CC 350 mA | <40°C | 30° medium | UW, 2x1,5 qmm | |
| 4.0197.10.03 | 12 POW-LED | 1860 lm | 4500K neutral white | total 15 W | CC 350 mA | <40°C | 30° medium | UW, 2x1,5 qmm | |
| 4.0197.10.09 | 12 POW-LED | RGB | all on 19 W | CC 350 mA | <40°C | 30° medium | UW, 6x1,0 + 2x0,5 qmm | ||
| POW-LED 12 V-DC, clear tempered glass lens | |||||||||
| 4.0197.10.61 | 12 POW-LED | 1980 lm | 6000K cold white | total 15 W | CV 12 V-DC | <40° | 30° medium | UW, 2x1,5 qmm | |
| 4.0197.10.62 | 12 POW-LED | 1620 lm | 3000K warm white | total 15 W | CV 12 V-DC | <40° | 30° medium | UW, 2x1,5 qmm | |
| 4.0197.10.63 | 12 POW-LED | 1860 lm | 4500K neutral white | total 15 W | CV 12 V-DC | <40° | 30° medium | UW, 2x1,5 qmm | |
| Circular cover | |||||||||
| POW-LED 350 mA, clear tempered glass lens | |||||||||
| 4.0197.20.01 | 12 POW-LED | 1980 lm | 6000K cold white | total 15 W | CC 350 mA | <40°C | 30° medium | UW, 2x1,5 qmm | |
| 4.0197.20.02 | 12 POW-LED | 1620 lm | 3000K warm white | total 15 W | CC 350 mA | <40°C | 30° medium | UW, 2x1,5 qmm | |
| 4.0197.20.03 | 12 POW-LED | 1860 lm | 4500K neutral white | total 15 W | CC 350 mA | <40°C | 30° medium | UW, 2x1,5 qmm | |
| 4.0197.20.09 | 12 POW-LED | RGB | all on 19 W | CC 350 mA | <40°C | 30° medium | UW, 6x1,0 + 2x0,5 qmm | ||
| POW-LED 12 V-DC, clear tempered glass lens | |||||||||
| 4.0197.20.61 | 12 POW-LED | 1980 lm | 6000K cold white | total 15 W | CV 12 V-DC | <40° | 30° medium | UW, 2x1,5 qmm | |
| 4.0197.20.62 | 12 POW-LED | 1620 lm | 3000K warm white | total 15 W | CV 12 V-DC | <40° | 30° medium | UW, 2x1,5 qmm | |
| 4.0197.20.63 | 12 POW-LED | 1860 lm | 4500K neutral white | total 15 W | CV 12 V-DC | <40° | 30° medium | UW, 2x1,5 qmm | |
| Squared cover | |||||||||
| POW-LED 350 mA, clear tempered glass lens | |||||||||
| 4.0197.40.01 | 12 POW-LED | 1980 lm | 6000K cold white | total 15 W | CC 350 mA | <40°C | 30° medium | UW, 2x1,5 qmm | |
| 4.0197.40.02 | 12 POW-LED | 1620 lm | 3000K warm white | total 15 W | CC 350 mA | <40°C | 30° medium | UW, 2x1,5 qmm | |
| 4.0197.40.03 | 12 POW-LED | 1860 lm | 4500K neutral white | total 15 W | CC 350 mA | <40°C | 30° medium | UW, 2x1,5 qmm | |
| 4.0197.40.09 | 12 POW-LED | RGB | all on 19 W | CC 350 mA | <40°C | 30° medium | UW, 6x1,0 + 2x0,5 qmm | ||
| POW-LED 12 V-DC, clear tempered glass lens | |||||||||
| 4.0197.40.61 | 12 POW-LED | 1980 lm | 6000K cold white | total 15 W | CV 12 V-DC | <40° | 30° medium | UW, 2x1,5 qmm | |
| 4.0197.40.62 | 12 POW-LED | 1620 lm | 3000K warm white | total 15 W | CV 12 V-DC | <40° | 30° medium | UW, 2x1,5 qmm | |
| 4.0197.40.63 | 12 POW-LED | 1860 lm | 4500K neutral white | total 15 W | CV 12 V-DC | <40° | 30° medium | UW, 2x1,5 qmm | |
Related products

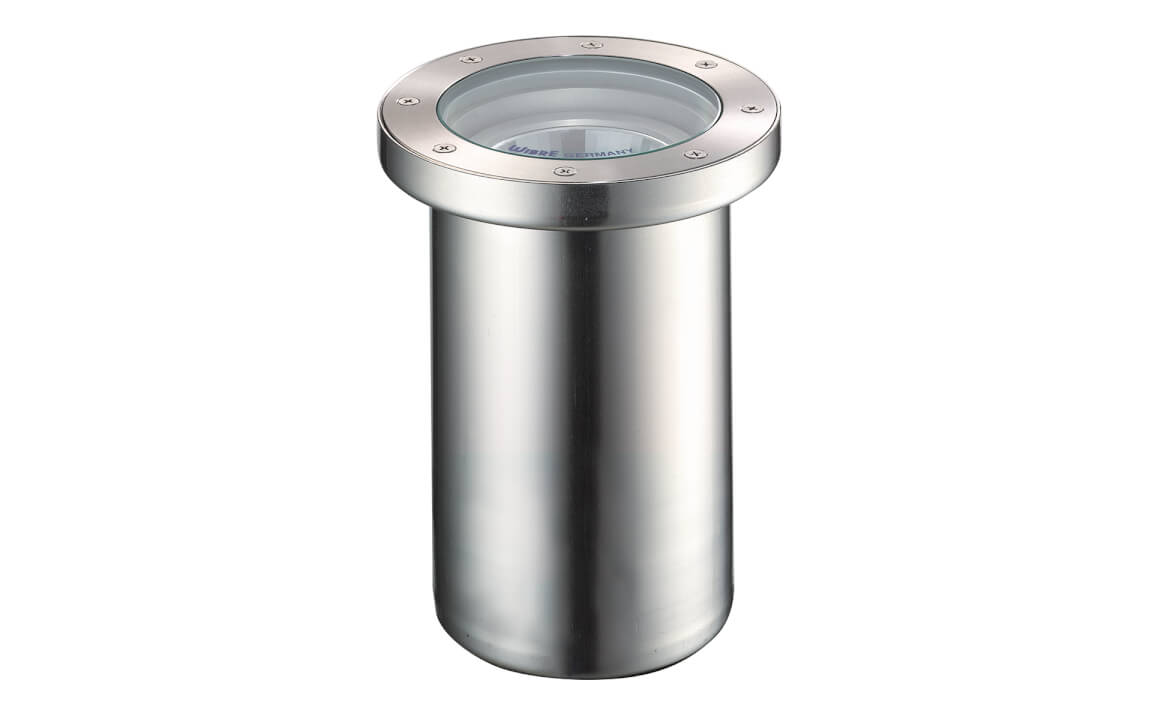

Recessed spotlight 4.0198
- High-quality spotlight for variable applications
- Up to 1980 lumen light intensity
- Versions with integrated operating device (230 V)

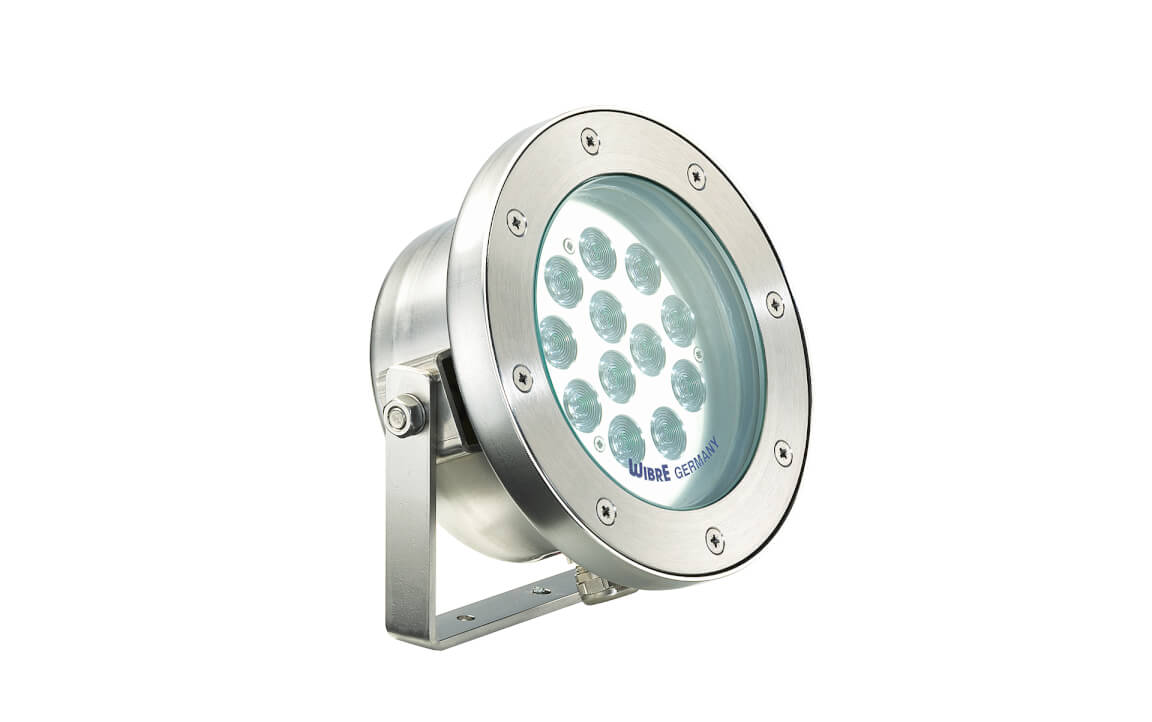

Surface-Spotlight 4.0192
- High-quality spotlight for many application areas
- Up to 1980 lumen light intensity
- Can be swivelled up to 180° individually

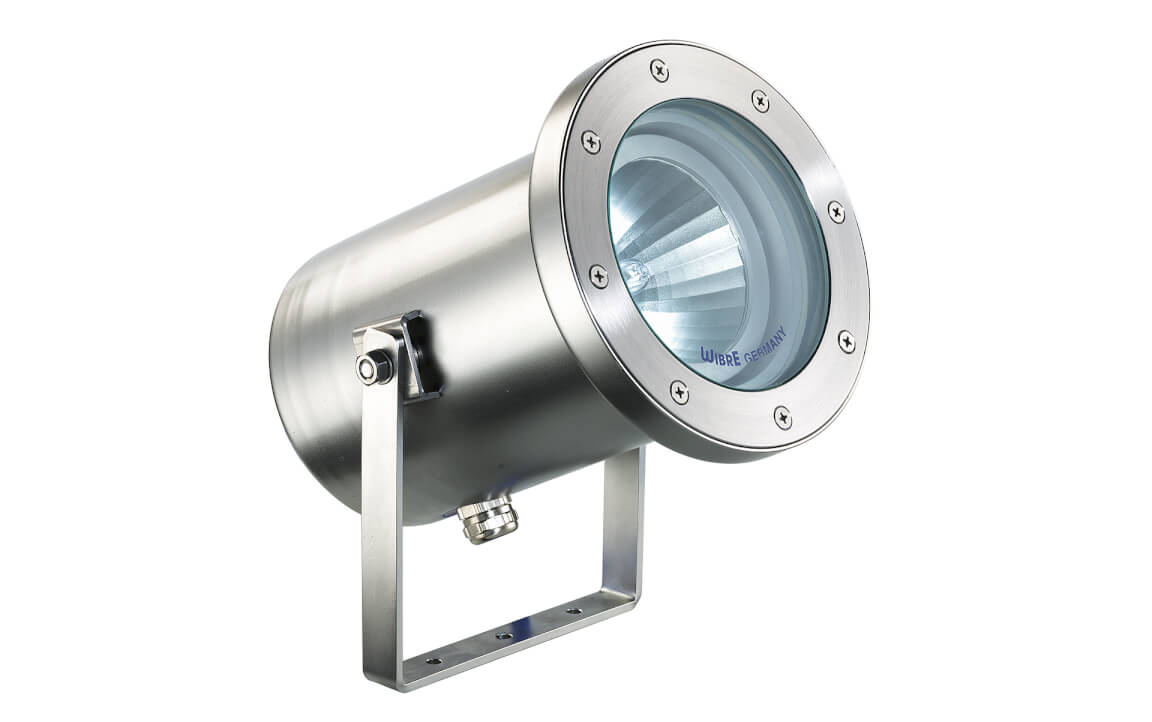

Surface-mounted Spotlight 4.0195
