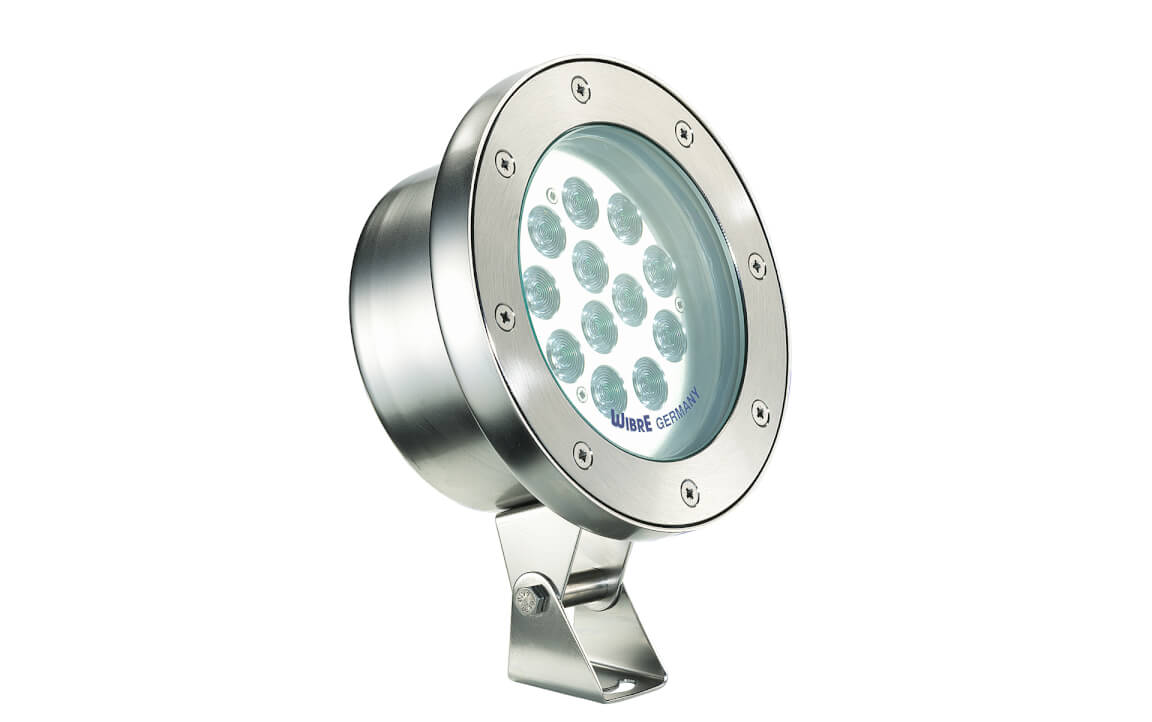

4.0192Surface-Spotlight

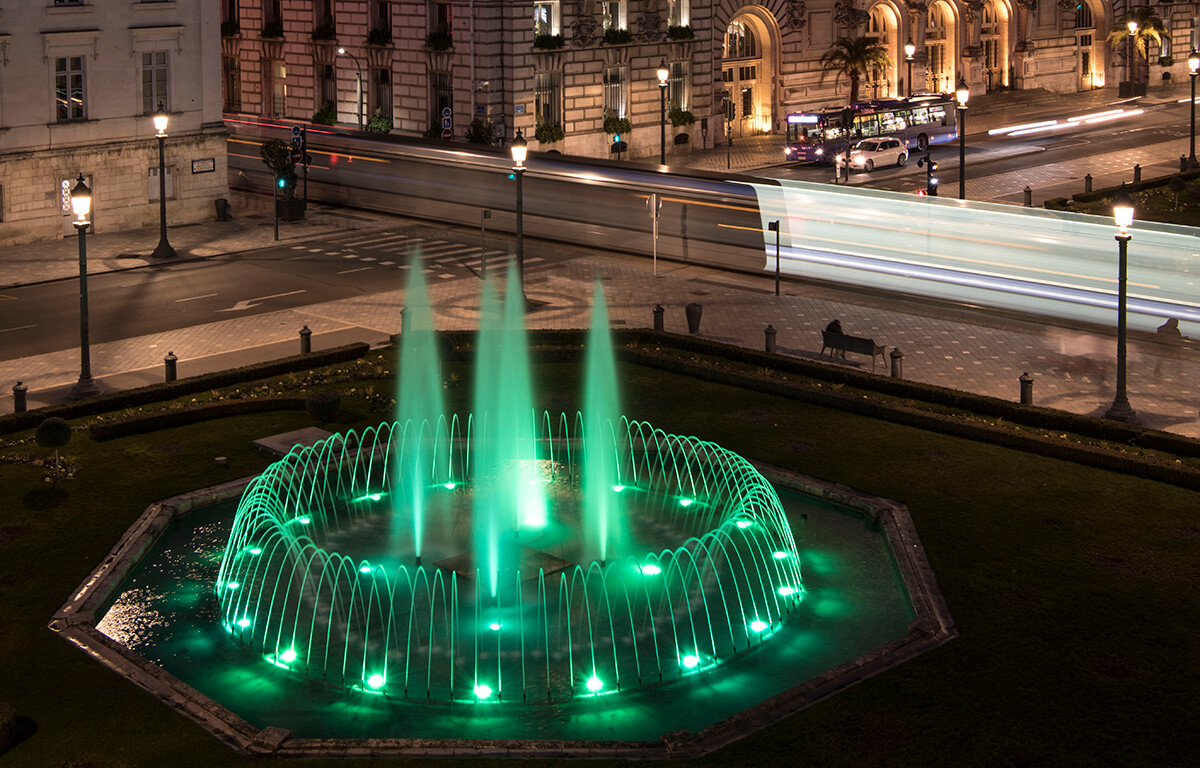

For lighting fountains and exterior areas.
Description
- Protection system IP68 – for a water depth of up to 3 m
- Protection class IP69 - protection against high pressure and high jet water temperatures
- Entirely made of stainless steel 316Ti

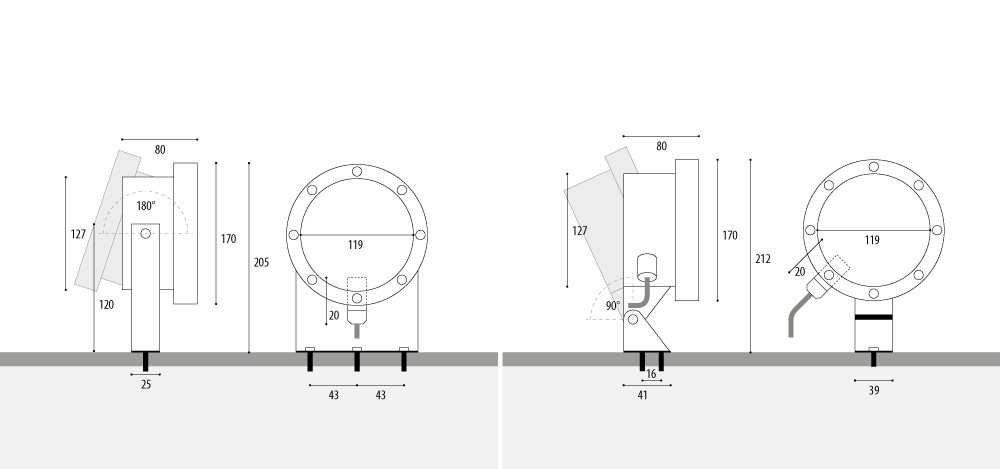

- Mounting foot adjustable through 180° or 90°
- operating mode: constant current
- POW-LED cold white, warm white, neutral white, CC
- POW-LED RGB
- operating mode: constant voltage
- POW-LED cold white, warm white, neutral white, CV
- Cable gland PG13,5, marine grade 316Ti stainless steel
- Temperature-resistant silicon seal
- Toughened safety glass
- Supplied with light source and 3 m of underwater cable
Notes/Options
- POW-LED, series-connected at 350 mA
- POW-LED in parallel connection at 12 V-DC
- SALINE version possible - Article number with an additional „S“ at the end
- Radation Angle: POW-LED: 10°, 30°, 45°
- 12 V-DC dimmable with dimming module 5.0690.03.15. Note: Other cable to the spotlight is required. Requires further agreements.
Accessories / Housings
9.0192.00.70

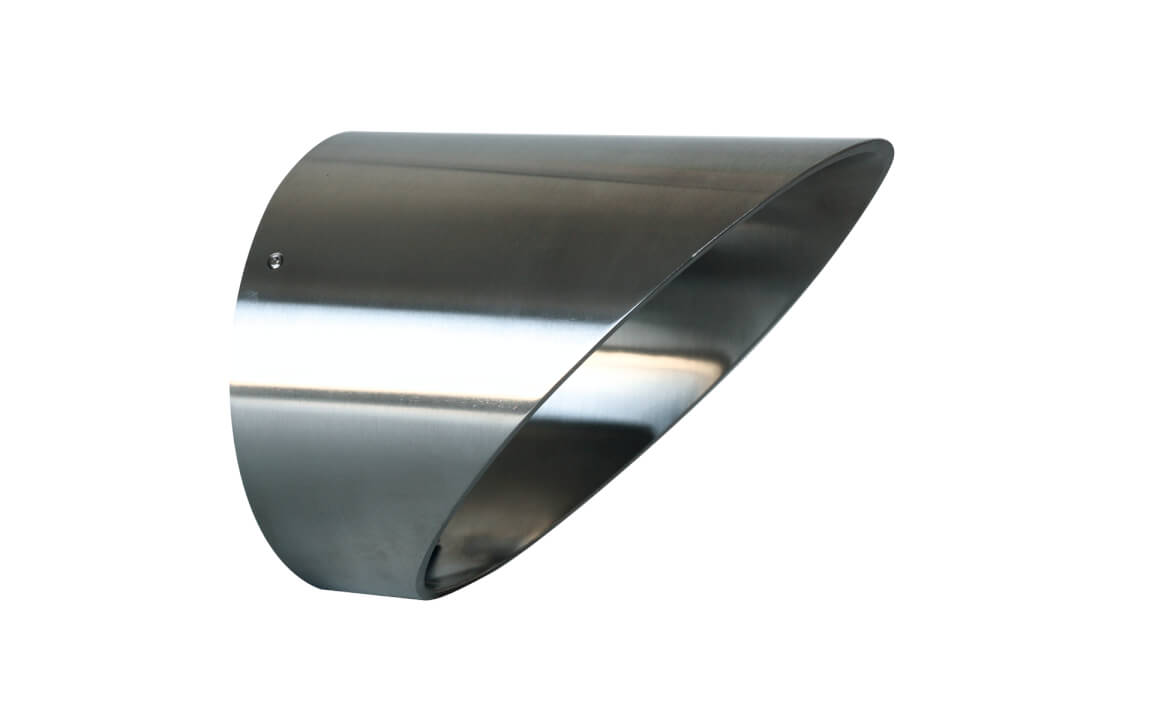

- Anti-glare ring
- Stainless steel 316Ti, ø 178 mm, length 203 mm
4.0003.02.02
4.0066.01.00
- glass disc, frosted
- for softer light distribution (light loss approx. -15%)
4.0305.50.00
- spike
- Stainless steel, 395 mm, for mounting foot 90°
| Article number | Lamps | Lumen | Light colour | Wattage | Current/Voltage | Socket | Radation angle | Cable | |
|---|---|---|---|---|---|---|---|---|---|
| Versions: Only underwater operations - Mounting foot adjustable through 90° | |||||||||
| POW-LED 350 mA/700 mA | |||||||||
| 4.0192.90.39 | 12 POW-LED | RGB | all on 34 W | Klemme | 30° medium | UW, 6x1,0 + 2x0,5 qmm | |||
| Versions: Only underwater operations - Mounting foot adjustable through 180° | |||||||||
| 4.0192.18.39 | 12 POW-LED | RGB | all on 34 W | Klemme | 30° medium | UW, 6x1,0 + 2x0,5 qmm | |||
| Versions: Under- and overwater operations (According to prior agreement) - Mounting foot adjustable through 90° | |||||||||
| 4.0192.90.01 | 12 POW-LED | 1980 lm | 6000K cold white | total 15 W | Klemme | 30° medium | UW, 2x1,5 qmm | ||
| 4.0192.90.02 | 12 POW-LED | 1620 lm | 3000K warm white | total 15 W | Klemme | 30° medium | UW, 2x1,5 qmm | ||
| 4.0192.90.03 | 12 POW-LED | 1860 lm | 4500K neutral white | total 15 W | Klemme | 30° medium | UW, 2x1,5 qmm | ||
| 4.0192.90.09 | 12 POW-LED | RGB | all on 19 W | Klemme | 30° medium | UW, 6x1,0 + 2x0,5 qmm | |||
| POW-LED 12 V-DC | |||||||||
| 4.0192.90.61 | 12 POW-LED | 1980 lm | 6000K cold white | total 15 W | Klemme | 30° medium | UW, 2x1,5 qmm | ||
| 4.0192.90.62 | 12 POW-LED | 1620 lm | 3000K warm white | total 15 W | Klemme | 30° medium | UW, 2x1,5 qmm | ||
| 4.0192.90.63 | 12 POW-LED | 1860 lm | 4500K neutral white | total 15 W | Klemme | 30° medium | UW, 2x1,5 qmm | ||
| Versions: Under- and overwater operations (According to prior agreement) - Mounting foot adjustable through 180° | |||||||||
| POW-LED 350 mA/700 mA | |||||||||
| 4.0192.18.01 | 12 POW-LED | 1980 lm | 6000K cold white | total 15 W | Klemme | 30° medium | UW, 2x1,5 qmm | ||
| 4.0192.18.02 | 12 POW-LED | 1620 lm | 3000K warm white | total 15 W | Klemme | 30° medium | UW, 2x1,5 qmm | ||
| 4.0192.18.03 | 12 POW-LED | 1860 lm | 4500K neutral white | total 15 W | Klemme | 30° medium | UW, 2x1,5 qmm | ||
| 4.0192.18.09 | 12 POW-LED | RGB | all on 19 W | Klemme | 30° medium | UW, 6x1,0 + 2x0,5 qmm | |||
| POW-LED 12 V-DC | |||||||||
| 4.0192.18.61 | 12 POW-LED | 1980 lm | 6000K cold white | total 15 W | Klemme | 30° medium | UW, 2x1,5 qmm | ||
| 4.0192.18.62 | 12 POW-LED | 1620 lm | 3000K warm white | total 15 W | Klemme | 30° medium | UW, 2x1,5 qmm | ||
| 4.0192.18.63 | 12 POW-LED | 1860 lm | 4500K neutral white | total 15 W | Klemme | 30° medium | UW, 2x1,5 qmm | ||
