4.0012Recessed-Spotlight

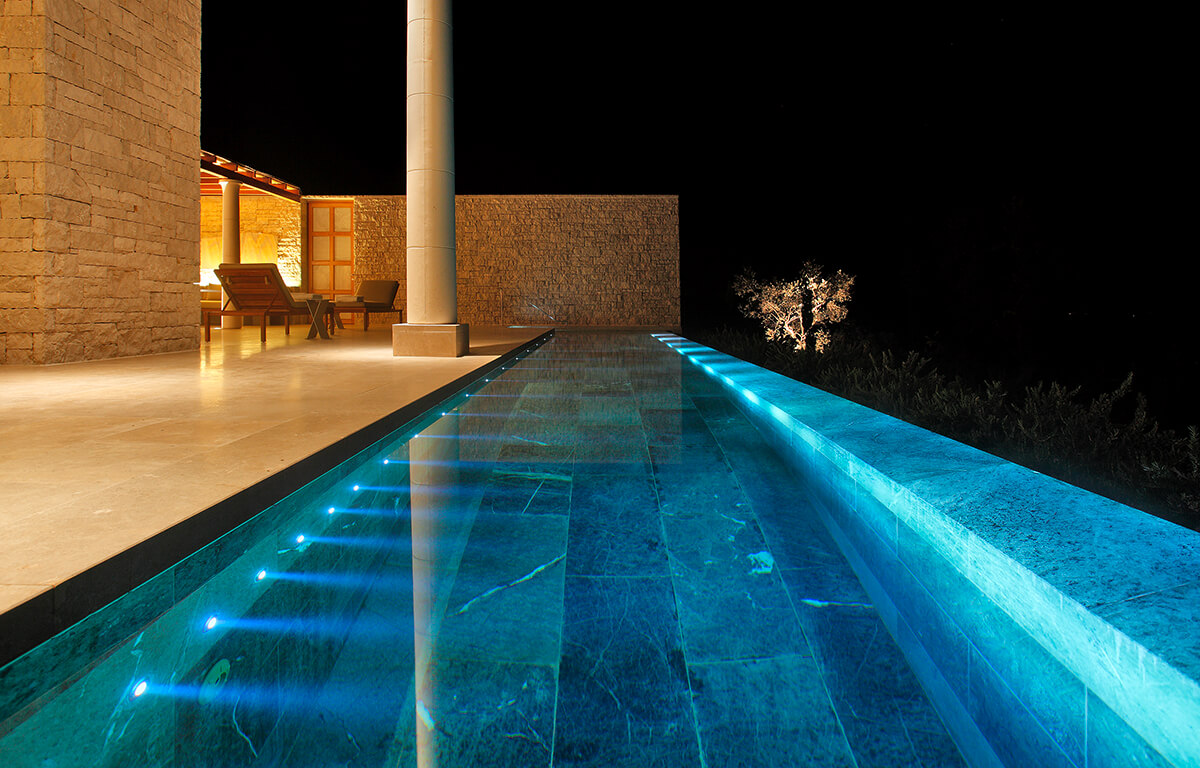

For accentuation in small swimming pools, whirlpools and water displays.
Description
- Protection class IP68 – Water depth 5 m
- Protection class IP69 - protection against high pressure and high jet water temperatures
- Entirely made of stainless steel 316Ti

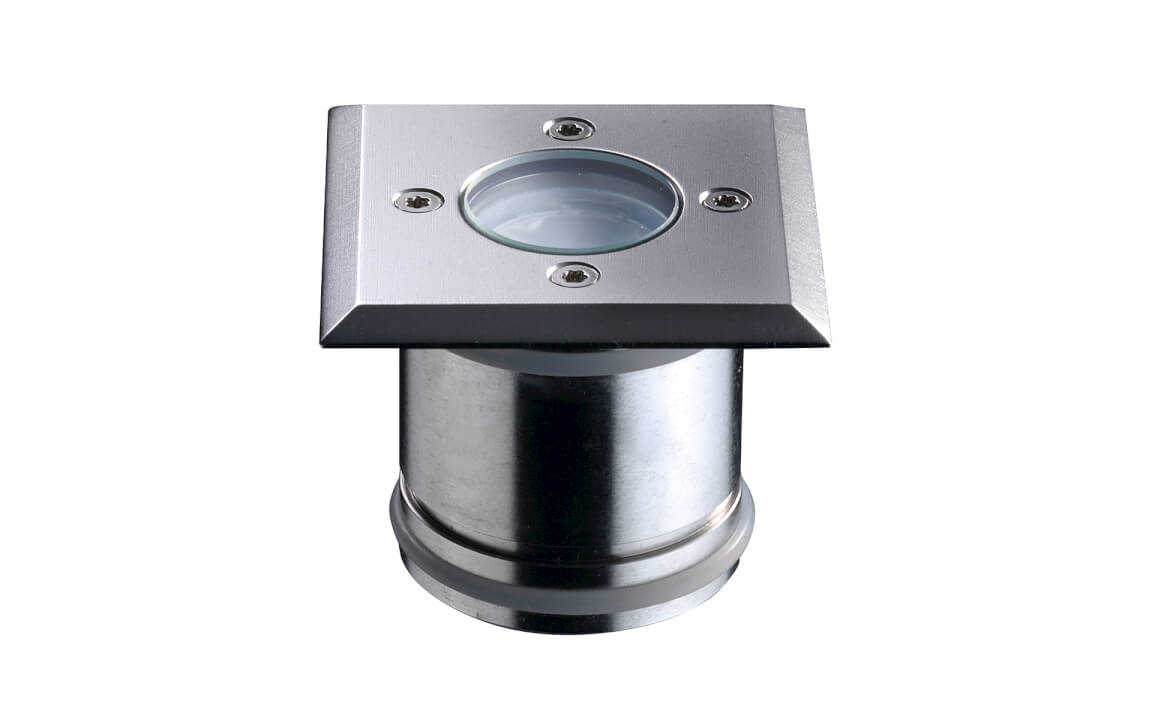

- Round or square attachment cover, height 3mm
- POW-LED cold white, warm white, neutral white
- POW-LED blue
- Multichip POW-LED RGB
- operating mode: constant current
- Rotationally symmetric light distribution
- Cable pressure sleeve, stainless steel 316Ti
- Installation housing made of stainless steel 316Ti with 1.5 m cable protection tube and connection socket
- supplied with 3m of UW-cable
Notes/Options
- SALINE version possible - Article number with an additional „S“ at the end
- Spotlight with special cover ø 74 mm using installation housing with pressure flange
- POW-LED, series-connected
- POW-LED with beam angle spot 10°, medium 30°, wide 45°, flood 90° and elliptical 15x40°
- POW-LED monochrome, single colour in green, red, amber, blue
- Homogeneous diffuse light distribution for accentuation on request.
Accessories / Housings
4.0012.01.00

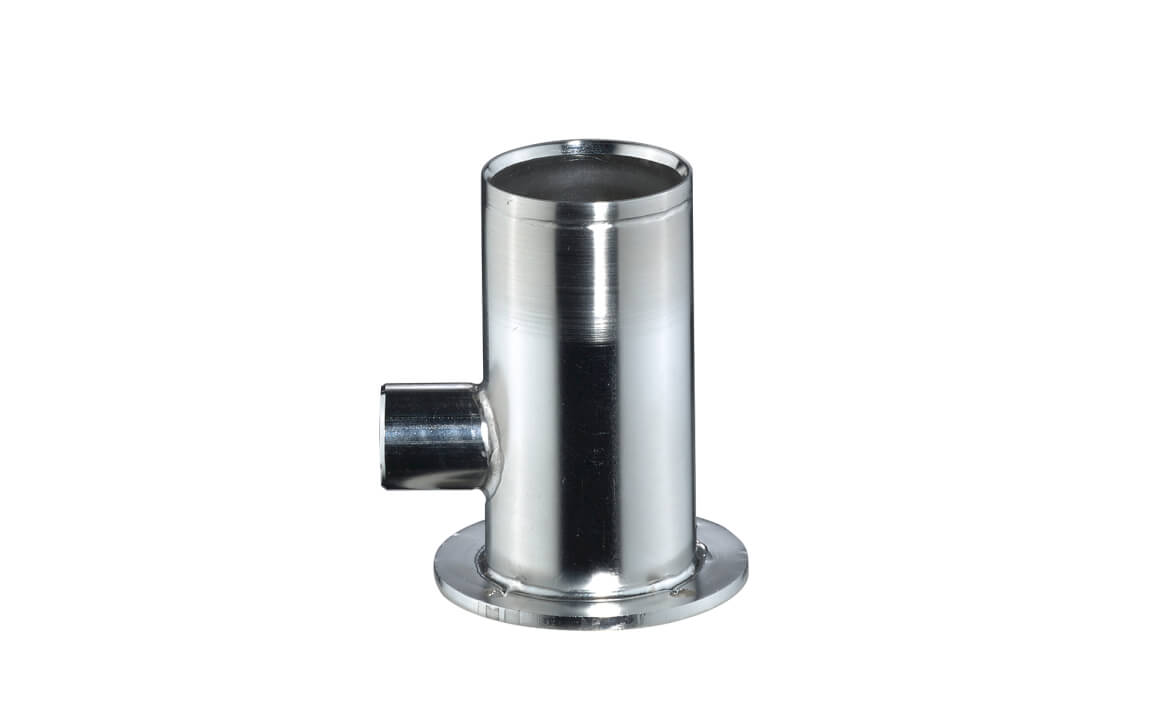

- Installation housing
- made of V4A stainless steel with 1.5 m protective cable tube and M20 plastic terminating connection, for installation in concrete pools with tile covering and for facing concrete
4.0012.02.00

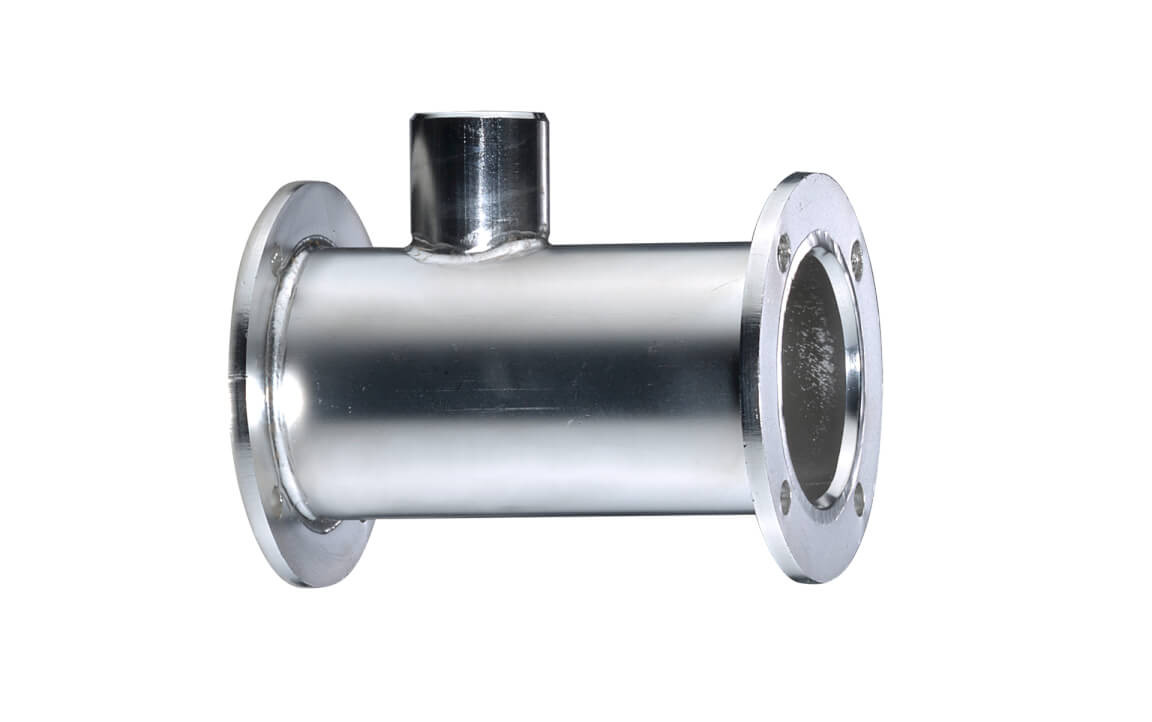

- Installation housing
- made of V4A stainless steel with 1.5m protective cable tube and M20 plastic terminating connection, for installation in thin-walled pools and foil lined pools (pressure flange ø 80 mm) - spotlight with special cover ø 74 mm
4.0012.03.00
- Installation housing
- made of V4A stainless steel with 1.5 m protective cable tube and M20 plastic terminating connection, for installation in pools with adhesive/foil coating (adhesive flange ø 150 mm)
4.0012.10.00
- Installation housing
- made of V4A stainless steel with 1.5 m protective cable tube and M20 plastic terminating connection, for installation in the floor area (without sheathing flange) with a housing installation height of max. 80 mm
| Article number | Lamps | Lumen | Light colour | Wattage | Current | Radation angle | Cable, installs | ||
|---|---|---|---|---|---|---|---|---|---|
| Versions: Underwater environments only | |||||||||
| Circular cover | |||||||||
| 4.0012.20.11 | 1 POW-LED | 165 lm | 6000K cold white | total 2 W | CC 350 mA | 10° spot | UW, 2x0,5 qmm | ||
| 4.0012.20.12 | 1 POW-LED | 135 lm | 3000K warm white | total 2 W | CC 350 mA | 10° spot | UW, 2x0,5 qmm | ||
| 4.0012.20.13 | 1 POW-LED | 155 lm | 4500K neutral white | total 2 W | CC 350 mA | 10° spot | UW, 2x0,5 qmm | ||
| 4.0012.20.16 | 1 POW-LED | 400 mW/LED | blue | total 2 W | CC 350 mA | 10° spot | UW, 2x0,5 qmm | ||
| 4.0012.20.19 | 1 Multichip POW-LED | RGB | all on 5 W | CC 350 mA | 120° flood | UW, 6x0,5 qmm | |||
| Squared cover | |||||||||
| 4.0012.40.11 | 1 POW-LED | 165 lm | 6000K cold white | total 2 W | CC 350 mA | 10° spot | UW, 2x0,5 qmm | ||
| 4.0012.40.12 | 1 POW-LED | 135 lm | 3000K warm white | total 2 W | CC 350 mA | 10° spot | UW, 2x0,5 qmm | ||
| 4.0012.40.13 | 1 POW-LED | 155 lm | 4500K neutral white | total 2 W | CC 350 mA | 10° spot | UW, 2x0,5 qmm | ||
| 4.0012.40.16 | 1 POW-LED | 400 mW/LED | blue | total 2 W | CC 350 mA | 10° spot | UW, 2x0,5 qmm | ||
| 4.0012.40.19 | 1 Multichip POW-LED | RGB | all on 5 W | CC 350 mA | 120° flood | UW, 6x0,5 qmm | |||
