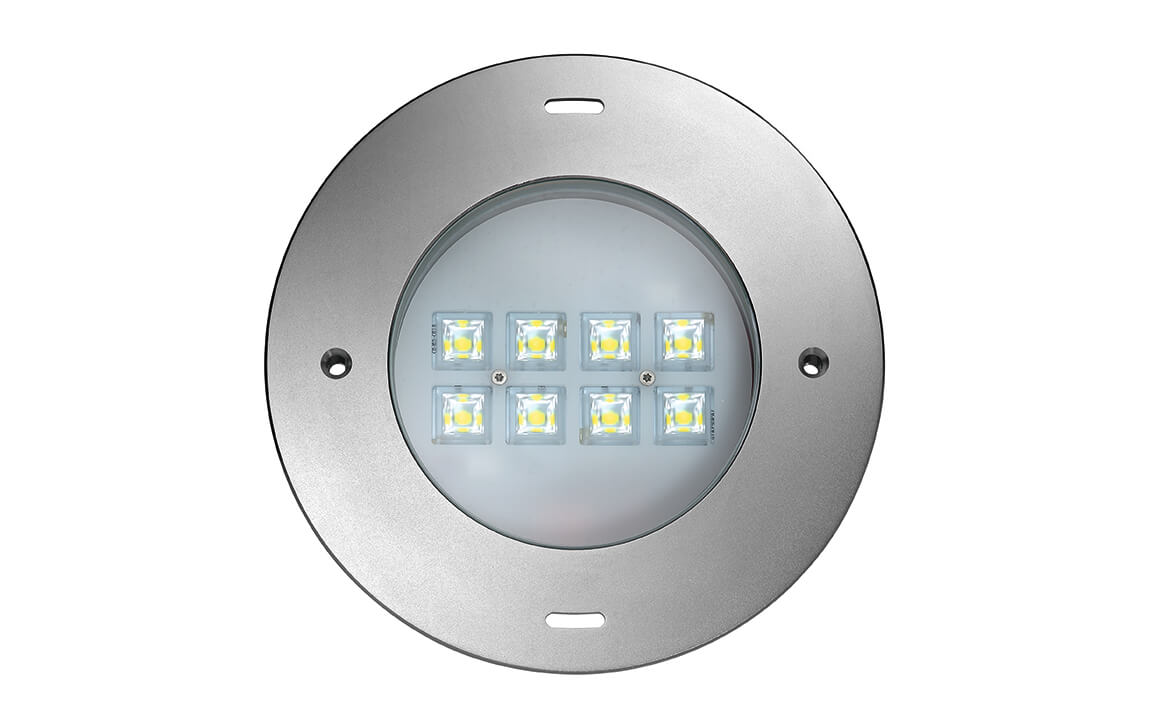

4.0202Swimming pool Light

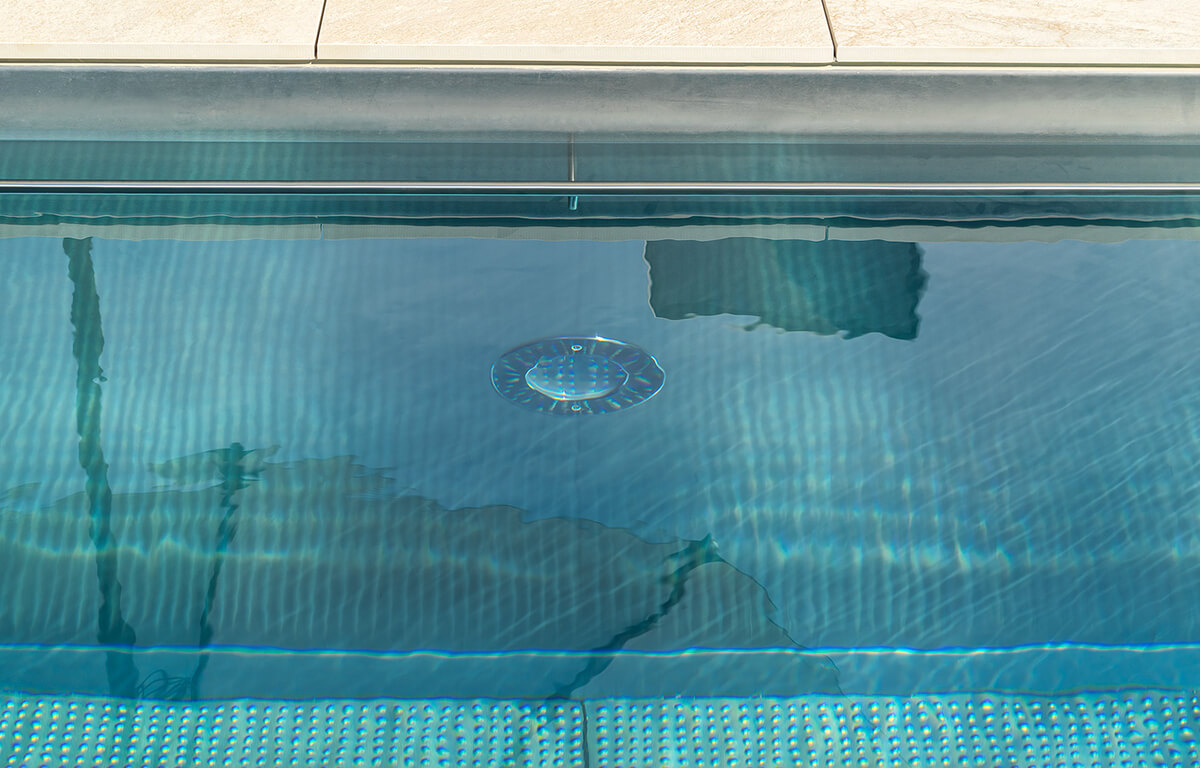

For illuminating small and medium swimming pools.
Description
- Protection class IP68 – up to 5m water depth
- Protection class IP69 - protection against high pressure and high jet water temperatures
- Entirely made of stainless steel 316Ti 1.4571, electropolished
- Round attachment cover, made of stainless steel 316Ti, height 2 mm
- POW-LED cold white, warm white, neutral white
- POW-LED royal blue

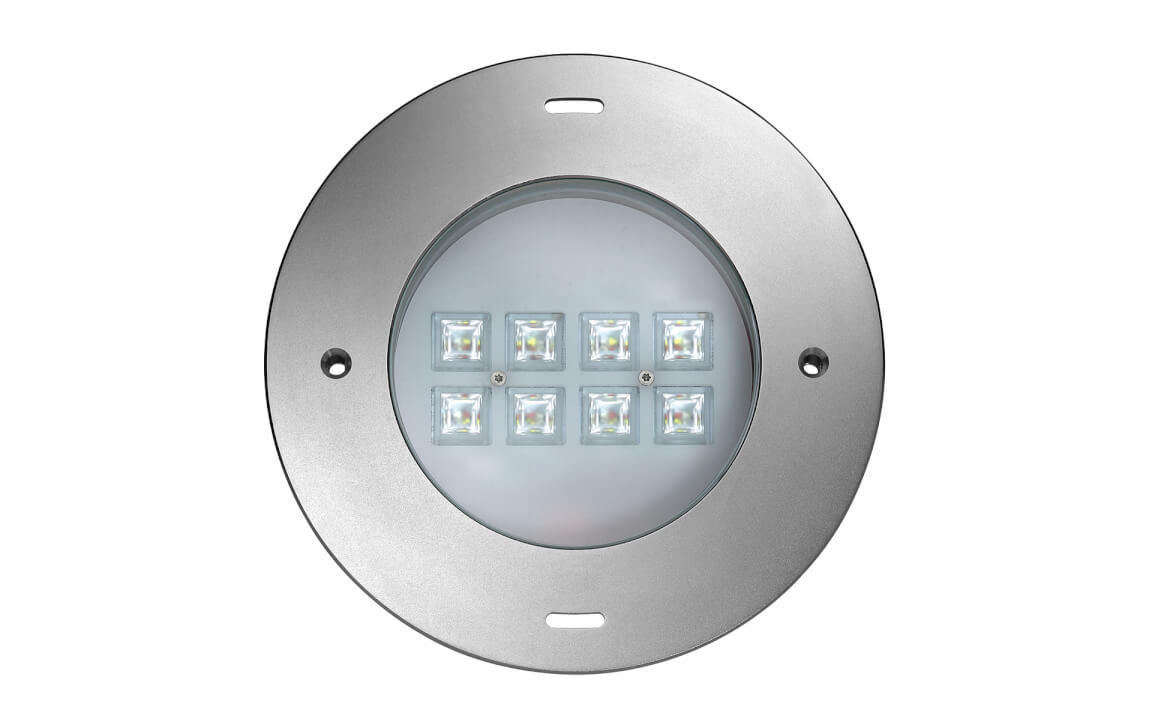

- Multichip POW-LED RGB-W
- operating mode: constant current
- temperature controlled (onboard)
- surge protection

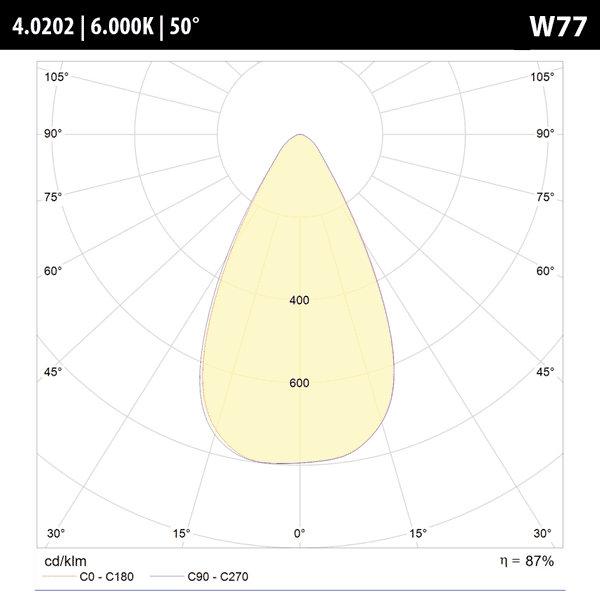

- rotationally symmetric wide light distribution
- Constant-current power source/RGB-W-controller ordered separately

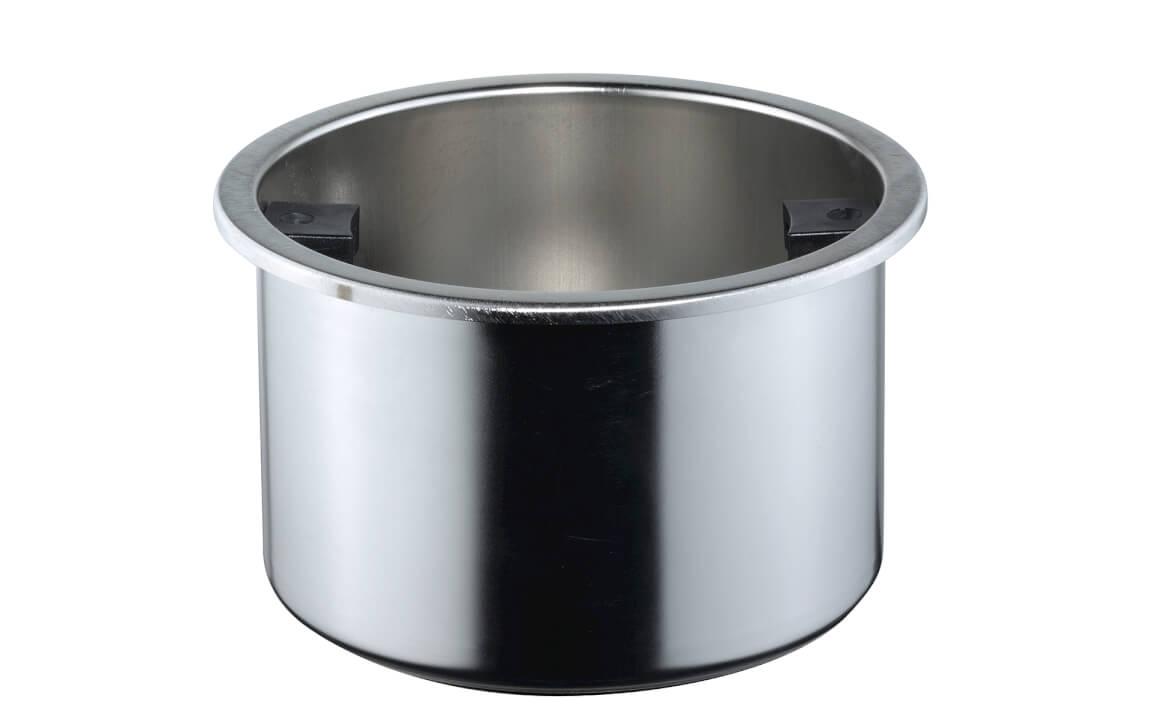

- Installation housing made of stainless steel 316Ti with 1.5 m cable protection tube
- Supplied with 5 m of special underwater cable
Notes/Options
- SALINE version possible - Article number with an additional „S“ at the end

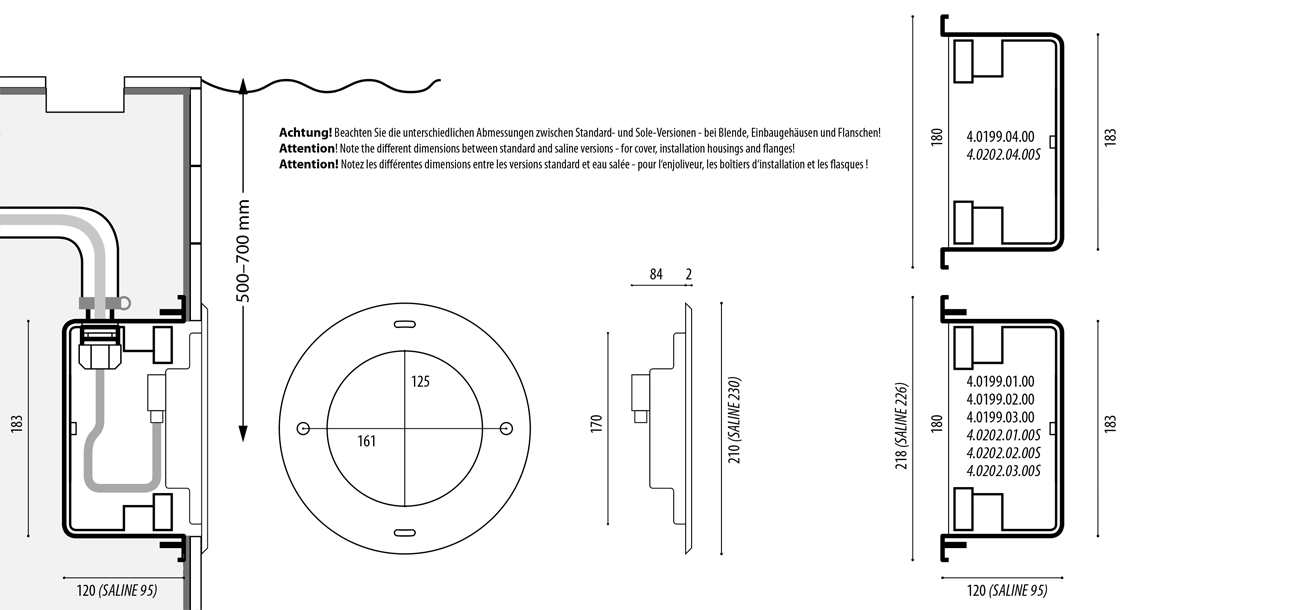

- Matching installation housing should be selected, depending on the installation type and situation.
- For facing concrete please use housing 4.0199.04.00
- POW-LED with beam angle spot 15°, medium 30°, wide 45°, flood 120°, asymmetric and elliptical 15x50° on request
- POW-LED monochrome, single colour in green, red, amber, blue, capri blue, 2700K
- Asymmetric light distribution especially for swimming pool lighting from a water depth of >1.80 m
- Dynamic White possible (3000-6000°K)
Accessories / Housings
50.40202.0002
- glass disc, frosted
- for softer light distribution (light loss approx. -15%)
4.0199.01.00
- Installation housing
- made of V4A stainless steel with 1.5 m protective cable tube and M20 plastic terminating connection, for installation in concrete pools with tile covering
4.0199.02.00
- Installation housing
- made of V4A stainless steel with 1.5m protective cable tube and M20 plastic terminating connection, for installation in thin-walled pools and foil lined pools (pressure flange ø 218 mm)
4.0199.03.00
- Installation housing
- made of V4A stainless steel with 1.5 m protective cable tube and M20 plastic terminating connection, for installation in pools with adhesive/foil coating (adhesive flange ø 360 mm)
4.0199.04.00
- Installation housing
- made of V4A stainless steel with 1.5 m protective cable tube and M20 plastic terminating connection, for facing concrete and for welding into stainless steel pools
| Article number | Lamps | Lumen | Light colour | Wattage | Current | Radation angle | Cable, installs | ||
|---|---|---|---|---|---|---|---|---|---|
| Versions: Underwater environments only | |||||||||
| 4.0202.00.11 | 8 POW-LED | 4600 lm | 6.000K cold white | total 31 W | CC 2400mA @12 V-DC | 50° symmetrisch | UW, 2x2,5 qmm | ||
| 4.0202.00.12 | 8 POW-LED | 3760 lm | 3.000K warm white | total 31 W | CC 2400mA @12 V-DC | 50° symmetrisch | UW, 2x2,5 qmm | ||
| 4.0202.00.13 | 8 POW-LED | 4024 lm | 4.500K neutral white | total 31 W | CC 2400mA @12 V-DC | 50° symmetrisch | UW, 2x2,5 qmm | ||
| 4.0202.00.16 | 8 POW-LED | 500mW/LED | royal blue (450 nm) | total 33 W | CC 2400mA @12 V-DC | 50° symmetrisch | UW, 2x2,5 qmm | ||
| 4.0202.00.41 | 8 Multichip POW-LED | cold white: 1160 lm | RGB-CW cold white 6000K | all on 50 W | CC 700mA @12 V-DC | 50° symmetrisch | UW, 10x0,5 qmm | ||
| 4.0202.00.42 | 8 Multichip POW-LED | warm white: 1000 lm | RGB-WW warm white 3000K | all on 50 W | CC 700mA @12 V-DC | 50° symmetrisch | UW, 10x0,5 qmm | ||
| 4.0202.00.43 | 8 Multichip POW-LED | neutral white: 1080 lm | RGB-NW neutral white 4500K | all on 50 W | CC 700mA @12 V-DC | 50° symmetrisch | UW, 10x0,5 qmm | ||
